Hose pump elements

Bredel Bioprene hose

Overview

Bioprene hose elements

The hose element is critical to ensure pump performance, durability and efficiency. Bredel composite reinforced hoses are constructed from high-quality compounded rubbers reinforced with four individual layers of braided nylon, and finished by high-precision machining. Inner and outer layers are extruded and, after construction, machined to ensure critical tolerances are maintained. Meets FDA standards, resistant to alcohols, acids and oxidizing products.

Perfect 100 % compression eliminates slippage which can destroy shear sensitive product and reduce metering accuracy.

Chemical Compatibility Guide

Features and benefits

  • Tight tolerances for low stress on bearings
  • Perfect compression for long life
  • Excellent suction performance – 9 m suction lift
  • High pressure capability – 232 psi
  • Repeatable volumetric accuracy to ± 1 %
  • Consistent capacity independent of varying suction and discharge conditions
  • Exceptional performance when handling high viscosity product
  • Max. fluid temperature: 140 °F, Min. fluid temperature: 32 °F

Technical summary

Max. operating pressure3.5 bar
Max. operating pressure51 psi
Operating temperature range5 - 45 °C
Operating temperature range41 - 113 °F
Bore size40 - 50 mm
Bore size1.57 - 1.97 in
Wall thickness13 - 14 mm
Wall thickness0.512 - 0.551 in

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Specifications

Technical specifications

40 mm50 mm
Max. operating pressure3.5 bar3.5 bar
Max. operating pressure51 psi51 psi
Suction pressure0.5 bar abs0.5 bar abs
Suction pressure7 psi abs7 psi abs
Operating temperature range5 - 45 °C5 - 45 °C
Operating temperature range41 - 113 °F41 - 113 °F
Fluid temperature range5 - 80 °C5 - 80 °C
Fluid temperature range41 - 176 °F41 - 176 °F
Bore size50 mm40 mm
Bore size1.97 in1.57 in
Wall thickness14 mm13 mm
Wall thickness0.551 in0.512 in
Length71.7 in58.7 in

Materials of construction

MaterialBioprene
Inner layerBioprene

Literature

Brochures

  1. Bredel pumps (US).pdf
    PDF - 2mb

Datasheet

  1. Bredel hose lubricant safety datasheet (EN).pdf
    PDF - 171.7kb

Recommended Products

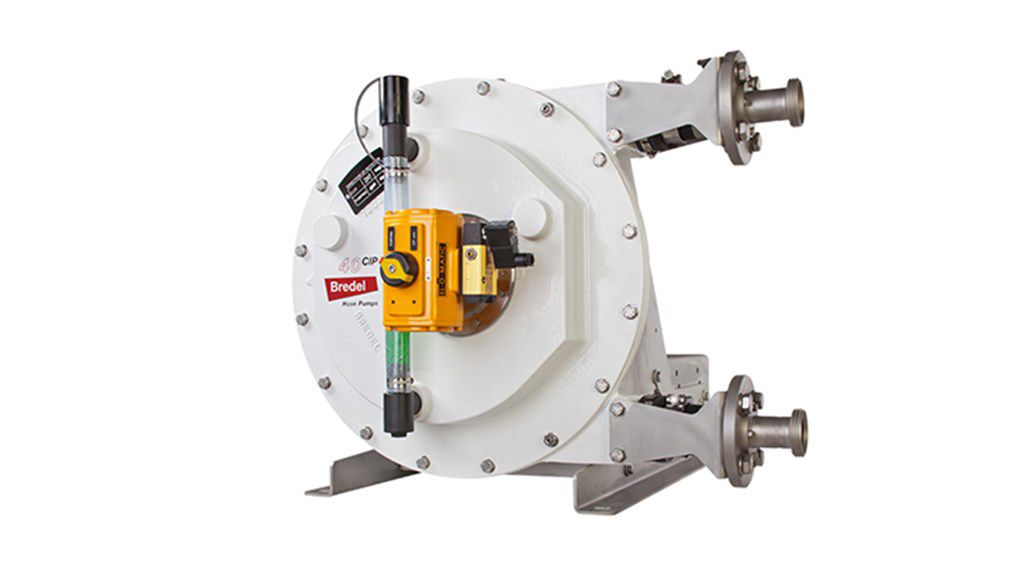

  1. Bredel CIP hose pumps
