Hose pump elements

APEX CSM hose

Overview

APEX CSM hose elements

The hose element is critical to ensure pump performance, durability and efficiency. Bredel APEX composite reinforced machined hoses are constructed from high-quality compounded rubbers reinforced with several individual layers of braided nylon, and finished by high-precision machining. Inner and outer layers are extruded and, after construction, machined to ensure critical tolerances are maintained. APEX CSM hoses are available for APEX 10/15/20 pumps only. Outstanding resistance to strong, oxidizing products and concentrated acids and bases.

Perfect 100 % compression eliminates slippage which can destroy shear sensitive product and reduce metering accuracy.

Examples of compatible media:

  • Hydrogen Peroxide up to 60 %
  • Cationic flocculant (polymer)
  • Highly concentrated Sulphuric Acid

Chemical Compatibility Guide

Features and benefits

  • Tight tolerances for low stress on bearings
  • Perfect compression for long life
  • Excellent suction performance – 9 m suction lift
  • High pressure capability – 116 psi
  • Repeatable volumetric accuracy to ± 1 %
  • Consistent capacity independent of varying suction and discharge conditions
  • Exceptional performance when handling high viscosity product
  • Max. fluid temperature: 176 ºF, Min. fluid temperature: 14 ºF

Technical summary

Max. operating pressure8 bar
Max. operating pressure116 psi
Operating temperature range-20 - 45 °C
Operating temperature range-4 - 113 °F
Bore size10 - 20 mm
Bore size0.39 - 0.79 in
Wall thickness8.5 mm
Wall thickness0.335 in

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Specifications

Technical specifications

10 mm15 mm20 mm
Max. operating pressure8 bar8 bar8 bar
Max. operating pressure116 psi116 psi116 psi
Suction pressure0.05 bar abs0.05 bar abs0.05 bar abs
Suction pressure1 psi abs1 psi abs1 psi abs
Operating temperature range-20 - 45 °C-20 - 45 °C-20 - 45 °C
Operating temperature range-4 - 113 °F-4 - 113 °F-4 - 113 °F
Fluid temperature range-10 - 80 °C-10 - 80 °C-10 - 80 °C
Fluid temperature range14 - 176 °F14 - 176 °F14 - 176 °F
Bore size10 mm15 mm20 mm
Bore size0.39 in0.59 in0.79 in
Wall thickness8.5 mm8.5 mm8.5 mm
Wall thickness0.335 in0.335 in0.335 in
Length27.5 in27.2 in27.2 in
Weight0.4 kg0.52 kg0.61 kg
Weight0.88 lbs1.21 lbs1.32 lbs

Hose composition

Materials of construction

MaterialCSM
Inner layerCSM
Outer layerNR

Literature

Brochures

  1. Bredel APEX pumps (US).pdf
    PDF - 1.9mb

Datasheet

  1. Bredel hose lubricant safety datasheet (EN).pdf
    PDF - 171.7kb
  2. APEX hose elements datasheet (EN).pdf
    PDF - 241kb

Order Information

Product codes

Recommended Products

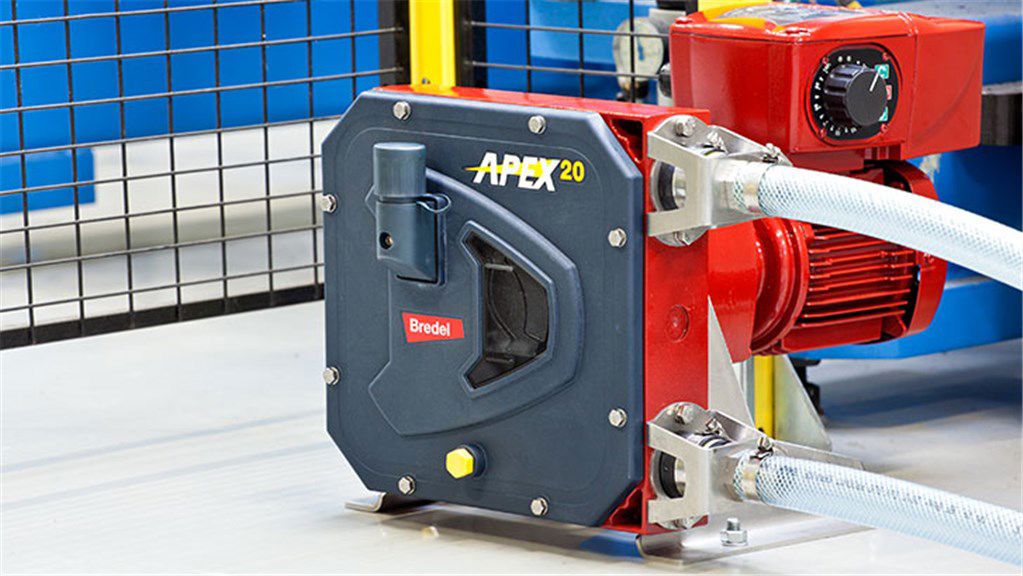

  1. APEX hose pumps
