Fluid path accessories

Fluid path accessories for Flexicon products include: a range of filling nozzles, tubing connectors (Y-connectors in PVDF or PP), weights for tubing, tube manifolds, filling stands and a range of format parts for table-top capping machines (including bottle tools for a wide range of diameters, capping heads for crimp capping and capping tools for screw caps).

Features and benefits

  • Filling nozzles for fill volumes from micro-volumes to more than 5000 ml
  • Single-use, sterilizable by gamma irradiation or autoclaving, stainless steel, gas purging, hand-held, pneumatic or filling nozzles with non-drip valve
  • Sterile and ready to use single-use fluid paths
  • FDA USP Class VI, FDA CFR 177.2510, BSE/TSE free tubing connectors
  • Weights for tubing to keep tubing at bottom of product tank
  • Laser welded stainless steel tube manifolds with 2 or 4 outlets on each manifold
  • Stainless steel filling stands for holding filling nozzles above bottles to be filled - heights from 380 mm to 750 mm

Technical summary

CertificationBSE/TSE free, FDA 21CFR177.1595, FDA 21CFR177.2415, FDA 21CFR177.2510, USP Class IV, USP Class VI
Gamma stabilitySterilisable by gamma irradiation

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Specifications

Technical specifications

2 Tube manfold4 Tube manifoldFilling nozzle - disposable PEI 100Filling nozzle - gas purgingFilling nozzle - hand-heldFilling nozzle - stainless steel AISI316LFilling nozzle - sterilizable by gamma irradiation or autoclavingFilling nozzle - with non-drip valveFilling nozzle - with pneumatic valveFilling standManifold assemblyWeight for tubingY-connectors polyproplyeneY-connectors PVDF/kynar
Sizes0.6-6.0 mm ID 0.6-6.0 mm ID 0.8-6.0 mm ID 1.3-5.1 mm ID 0.6-8.0 mm ID 0.6-8.0 mm ID 5.0-12.0 mm ID H380 mm 1"-1.5" bore 1.6-8.0mm ID 1.2-10.2 mm ID 1.2-4.8 mm ID
CertificationFDA 21CFR177.1595, USP Class VI BSE/TSE free, FDA 21CFR177.2415, USP Class VI BSE/TSE free, FDA 21CFR177.2510, USP Class IV
Gamma stabilitySterilizable by gamma irradiation

Dimensions

Tube connector for 2 tubes -Part number A (OD) (mm) B (ID) (mm)
84-081-106 0.6 1.0
84-081-110 1.0 1.5
84-081-116 1.6 2.1
84-081-132 3.2 3.8
84-081-145 4.5 5.5
84-081-160 6.0 7.0

Dimensions

Tube connector for 4 tubes - Part number A (OD) (mm) B (ID) (mm)
84-082-106 0.6 1.0
84-082-110 1.0 1.5
84-082-116 1.6 2.1
84-082-132 3.2 3.8
84-082-145 4.5 5.5
84-082-160 6.0 7.0

Dimensions

SPECIFICATIONS
Materials PEI 1000 (Polyetherimide)
A (ID) B (OD) Fill volumes from Part number
Dimensions in mm Ø0,8 Ø2,2 0.5 ml 30-033-008
Ø1,2 Ø2,6 1.0 ml 30-033-012
Ø1,6 Ø3,0 1.7 ml 30-033-016
Ø3,2 Ø4,6 6.5 ml 30-033-032
Ø4,8 Ø6,5 12.0 ml 30-033-048
Ø6,0 Ø8,0 22.0 ml 30-033-060
Set of all sizes 30-700-053
Compliance FDA 21 CFR § 177.1595 USP Class VI
Declaration of compliance - type 2.1 acc.: DS/EN 10204 Included

Dimensions

SPECIFICATIONS
Materials AISI 316L + Viton
C (ID) D (OD) Part number
Dimensions in mm Ø4,5 Ø5,3 30-031-050
Ø8,5 Ø10,1 30-031-090
O-ring for gas filling nozzle 54-020-116
Nozzle holder incl. arm for filling stand 30-700-053
Declaration of compliance - Type 2.1 acc.: DS/EN 10204 Included
Part number Description
81-100-200 Filling stand Ø12 x H380 mm for filling nozzles 30-030-xxx
81-200-050 Filling stand Ø20 x H500 mm for filling heads 30-200-xxx
81-200-000 Filling stand Ø20 x H750 mm for filling heads 30-200-xxx
30-700-053 Nozzle holder arm for filling nozzles 30-030-xxx, 30-033-xxx and 30-040-xxx. Can be mounted on all filling stands. (Included in 81-100-200)
30-710-052 Nozzle holder arm for filling heads 30-200-xxx. Can be mounted on all filling stands. (Included in 81-200-050 and 81-200-000)

Dimensions

SPECIFICATIONS
Materials AISI 316L
A (ID) B (OD) Fill volumes from Part number
Dimensions in mm Ø1,3 Ø2,3 1.0 ml 30-015-020
Ø3,1 Ø4,0 6.5 ml 30-015-040
Ø4,1 Ø5,0 12.0 ml 30-015-050
Ø5,1 Ø8,5 & 6,0 22.0 ml 30-015-060
Declaration of compliance - Type 2.1 acc.: DS/EN 10204 Included

Dimensions

SPECIFICATIONS
Materials AISI 316L
A (ID) B (OD) Fill volumes from Part number
Dimensions in mm Ø0,6 Ø1,0 0.1 ml 30-030-006
Ø1,0 Ø1,5 0.5 ml 30-030-010
Ø1,6 Ø2,1 1.7 ml 30-030-016
Ø3,2 Ø3,8 6.5 ml 30-030-032
Ø4,5 Ø5,5 12.0 ml 30-030-045
Ø6,0 Ø7,0 22.0 ml 30-030-060
Ø8,0 Ø9,0 35.0 ml 30-030-080
Set of all sizes 82-100-010
Nozzle holder incl. arm for filling stand 30-700-053
Declaration of compliance - Type 2.1 acc.: DS/EN 10204 Included

Dimensions

SPECIFICATIONS
Materials AISI 316L and PEEK
A (ID) B (OD) Fill volumes from Part number
Dimensions in mm Ø0,6 Ø1,0 0.1 ml 30-040-006
Ø1,0 Ø1,5 0.5 ml 30-040-010
Ø1,6 Ø2,1 1.7 ml 30-040-016
Ø3,2 Ø3,8 6.5 ml 30-040-032
Ø4,5 Ø5,5 12.0 ml 30-040-045
Ø6,0 Ø7,0 22.0 ml 30-040-060
Ø8,0 Ø9,0 35.0 ml 30-040-080
Nozzle holder incl. arm for filling stand 30-700-053
Compliance FDA USP, class VIFDA 21 CFR Part 177.2415, 2008BSE/TSE free
Quality certificate Included

Dimensions

SPECIFICATIONS
Materials AISI 316
A (ID) B (OD) Fill volumes from Part number
Dimensions in mm Ø8,5 Ø6,0 25.0 ml 30-200-085
Ø12,0 Ø8,0 100.0 ml 30-200-120
Ø15,0 Ø10,0 150.0 ml 30-200-150
Position Part number
1.2 - Nitrile rubber valve plate 30-200-086
1.2 A - PTFE (Teflon) valve plate 30-200-084
1.3 - PTFE (Teflon) valve insert 30-200-082
1.4 - Nut 30-200-010
SPECIFICATIONS
Materials AISI 316
A B (OD) C (ID) Fill volumes from Part number
Dimensions in mm 75 Ø8,0 Ø5,0 25.0 ml 30-210-050
75 Ø10,0 Ø7,0 50.0 ml 30-210-070
75 Ø12,0 Ø9,0 150.0 ml 30-210-090
35 Ø15,0 Ø10,0 150.0 ml 30-210-091
75 Ø16,0 Ø12,0 300.0 ml 32-210-120
With net at tip of nozzle prevents dripping when filling oil 75 Ø12,0 Ø8,0 100.0 ml 32-215-080
75 Ø16,0 Ø11,0 300.0 ml 32-215-110

Dimensions

A = NOZZLE BODY
To be used with Part number
A Incl. pneumatic control box PD12, PD22, GD30 82-510-000
A1 Excl. pneumatic control box PF22, DF32, GF30 30-100-000
B = TUBE CONNECTOR
ID OD Part number
Dimensions in mm 7 10 30-100-105
10 13 30-100-110
C = FILLING NOZZLE WITH OUTSIDE VALVE
ID OD Length of nozzle Part number
Dimensions in mm 8 10 110/60 30-100-250
12 14 110/60 30-100-260
8 10 300/250 30-100-270
12 14 300/250 30-100-280
D = FILLING NOZZLE WITH INSIDE VALVE
Dimensions in mm ID OD Length of nozzle Part number
6 14 110/63 30-100-208
7,5 14 110/53 30-100-210
SPARE PARTS FOR A / A1
Pos. Description Part number
1 Nozzle body 30-100-005
2 Arm 30-700-050
3 House for gasket 30-100-012
4 Gasket 54-190-060
5 Head for cylinder 30-100-010
6 Spring 30-100-015
7 Spring top 30-100-020
8+9 Pneumatic cylinder 30-100-050
10 Gasket 30-100-053
11 Gasket 30-100-051

Dimensions

Clamp gasket - Part number Description ID (mm)
84-085-220 1” bore, nitrile 25.4
84-085-222 1½” bore, nitrile 38.1
84-085-230 1” bore, silicone 25.4
84-085-232 1½” bore, silicone 38.1

Dimensions

Weight for tubing – Part number A (ID) (mm) B (OD) (mm)
30-032-016 1.6 2.1
30-032-032 3.2 3.8
30-032-045 4.5 5.5
30-032-060 6.0 7.0
30-032-080 8.0 9.0

Dimensions

Y-connector with certificate - part number A (OD) (mm) B (ID) (mm) For ID tube (mm)
84-011-002 2.4 1.2 0.5-0.8
84-011-004 3.6 1.8 1.2-1.6
84-011-006 5.9 3.0 3.0-3.2
84-011-008 7.2 3.6 3.2-4.8
84-011-010 9.5 4.8 4.8-6.5
84-011-012 12.4 7.5 8.0-10.0
84-011-014 15.9 10.2 10.0-12.5

Dimensions

Part number A (OD) (mm) B (ID) (mm) For ID tube (mm)
84-012-002 2.4 1.2 0.5-0.8
84-012-004 3.6 1.8 1.2-1.6
84-012-006 5.9 3 3.0-3.2
84-012-008 7.2 3.6 3.2-4.8
84-012-010 9.5 4.8 4.8-6.5

Materials of construction

MaterialKynar®, Nitrile, Nitrile rubber, PEEK, PEI 1000 (Polyetherimide), Polypropylene, PTFE, PVDF, Silicone, Stainless steel AISI 316L

Literature

Brochures

  1. Filling nozzles disposable (EN).pdf
    PDF - 231.9kb
  2. Filling nozzles stainless (EN).pdf
    PDF - 219.1kb
  3. Filling nozzles non drip valve (EN).pdf
    PDF - 252.5kb
  4. Filling nozzles gamma (EN).pdf
    PDF - 385.5kb
  5. Filling nozzles gas purging (EN).pdf
    PDF - 232.9kb
  6. Filling nozzles hand held (EN).pdf
    PDF - 209.3kb
  7. Filling nozzles pneumatic valve (EN).pdf
    PDF - 230.1kb

Datasheet

Manuals

  1. Flexicon manifold assembly (EN).pdf
    PDF - 558kb
  2. Flexicon weight for tubing (EN).pdf
    PDF - 449.2kb
  3. Y-Connectors sales manual (EN).pdf
    PDF - 345.7kb
  4. Flexicon filling stand (EN).pdf
    PDF - 57.3kb
  5. Flexicon 2 tube manifold (EN).pdf
    PDF - 224kb
  6. Y-connectors PDVF-Kynar sales manual (EN).pdf
    PDF - 257.6kb
  7. Flexicon 4 tube manifold (EN).pdf
    PDF - 232.1kb

Recommended Products

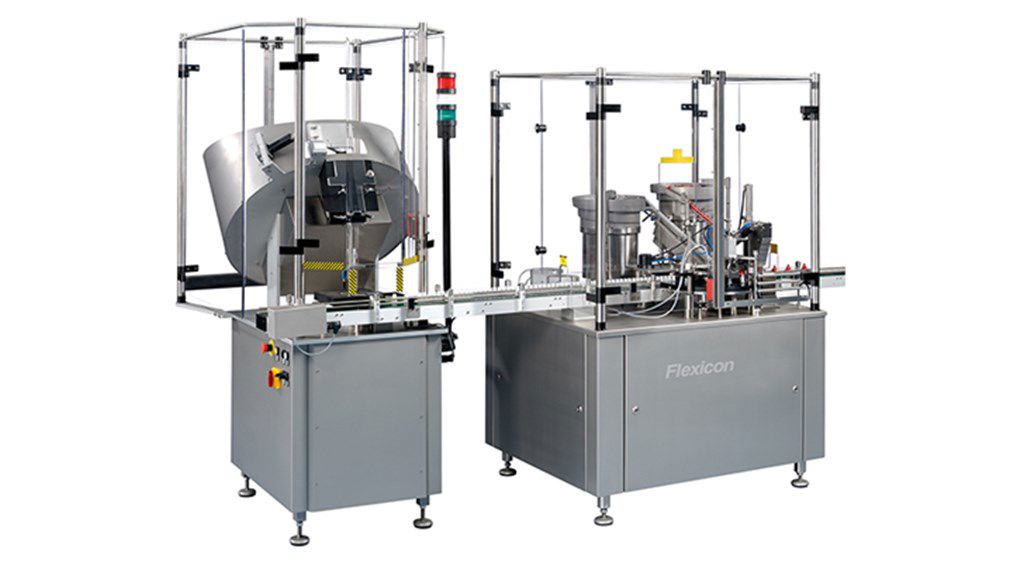

  1. FMB210
