Aseptic filling - fully automatic systems

FMB210 filling and capping machines

Overview

FMB210 filling and capping machines for vials, stoppers, caps, bottles, screw caps and micro tubes

The FMB210 range of fully automatic filling and capping machines is capable of working with many different liquids and fill volumes and a range of containers.

As with all Flexicon filling systems, the liquid only contacts a single-use fluid path, so the changeover from one liquid to another can be done quickly, without the risk of cross-contamination.

The system is modular and can be customized. For example, the infeed can be a wide conveyor with a scroll or a rotary table. Capping torque is precisely controlled and monitored. This prevents leakage due to fluctuating air pressure in storage or transit.

A production run can be set up in less than 20 minutes, with changeover completed without assistance from outside the cleanroom area.

Flexicon offers IQ/OQ for the equipment and provides a free validation pack for the fluid path, reducing the time and resources needed at validation.

The total capacity of the FMB210 per working day is unique for this size of filling and capping solution.

For filling, stoppering and crimp capping of vials, with volumes from micro volumes up to 100 ml. Integrated peristaltic fillers ensure accurate filling, and prevent costly overfills, even on very small fill volumes. Depending upon fill volume, the machine can process up to 4500 vials per hour.

Also for filling and screw capping of bottles with volumes from micro volumes to more than 250 ml.

Production costs are minimized, with a single operator managing up to 2200 screw cap bottles per hour - feeding the machine with empty bottles and caps, and removing the final product from the outfeed.

The systems are extremely reliable; deliver improved flexibility, reduced production costs, minimum risk of leaking containers, less costly overfilling and more efficient validation processes.

Features and benefits

  • Fill volumes from micro volumes up to 250 ml
  • ±0.5 % filling accuracy on most volumes and capping torque better than ±10 N cm
  • Less costs for IQ/OQ and process validation
  • Proven technology for reliability and easy validation
  • Highly accurate filling of volumes from micro-volumes
  • Reduced costs for process validation

Technical summary

Filling volume range 0.1-100 ml
Capacity4500 units/hour

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Specifications

Technical specifications

FMB210
Filling volume range 0.1-100 ml
Capacity4500 units/hour
Power supply200-240 VAC single phase and earth
Power consumptionMax 1500 W
Air supply/pneumatic connection7 bar clean and dry air
Weight650 kg

Dimensions

Materials of construction

MaterialAnodized aluminum, Stainless steel

Literature

Brochures

  1. FMB210 (EN).pdf
    PDF - 622.6kb

Datasheet

Videos

FMB210 for vials with stoppers and crimp caps

FMB210 for screw cap bottles

FMB210 for micro tubes

Recommended Products

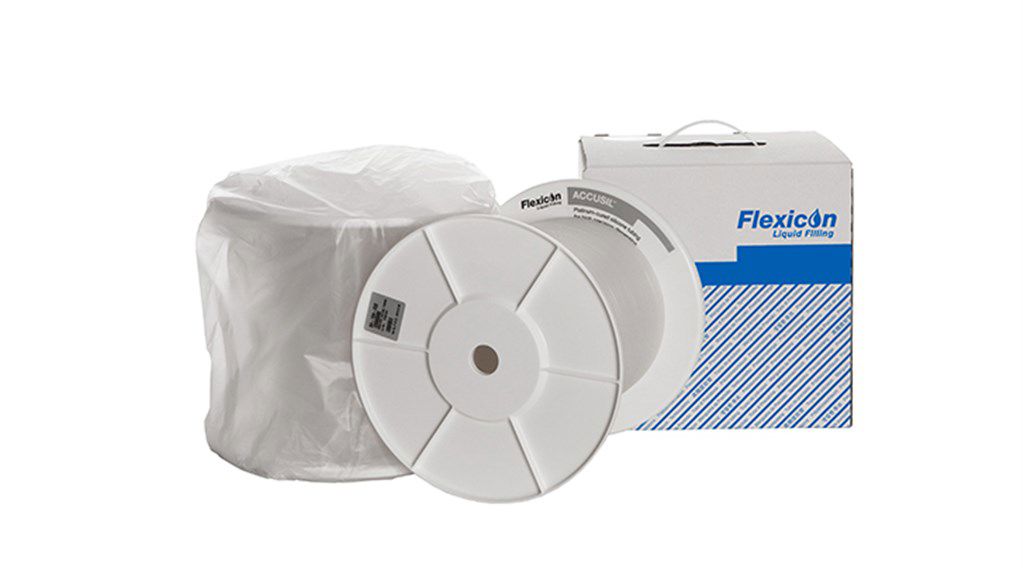

  1. Accusil tubing
