Valves - diaphragms

Silicone and Silicone Plus diaphragms

Overview

Silicone and Silicone Plus diaphragms

Medical grade platinum-cured silicone diaphragms meet USP Class VI and FDA 21 CFR 177.2600 standards.

We provide two different finishes to our silicone diaphragms, white which is made with Q7-4765 and 0.25 % titanium dioxide or clear with no titanium dioxide.

We also offer a Parylene surface treated version doubling the longevity of the diaphragm.

Features and benefits

  • All our diaphragms are laser-etched with cure dates and batch numbers, ensuring that they are completely traceable
  • Medical grade silicone available in white or clear finish
  • Widely used in pharmaceutical applications
  • Parylene surface treated version also available

Technical summary

Diaphragm variant(s)Bellows, Parylene surface, Straight
Operating temperature range-51 - 135 °C
Operating temperature range-60 - 275 °F
Compatible actuatorsAJS, AKS, AKS (0.5", 1", 1.5")
Material specificationMedical grade (platinum cured), Silicone with Parylene surface treatment
StandardsASME BPE, USP VI

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Specifications

Technical specifications

Silicone diaphragmsSilicone Plus diaphragms
Sizes0.5", 0.75", 1.0", 1.5", 2.0", 3.0", 4.0" 0.5", 1.0", 1.5", 2.0", 3.0"
ColorWhite White
Diaphragm variant(s)Bellows, Straight Parylene surface, Straight
Parylene treatmentNo No, Yes
Operating temperature range-51 - 135 °C-51 - 135 °C
Operating temperature range-60 - 275 °F-60 - 275 °F
Compatible actuatorsAJS, AKS, AKS (0.5", 1", 1.5") AJS, AKS (0.5", 1", 1.5")
Material specificationMedical grade (platinum cured) Silicone with Parylene surface treatment
StandardsASME BPE, USP VI ASME BPE, USP VI

Materials of construction

MaterialSilicone

Literature

Brochures

  1. ASEPCO valves (US).pdf
    PDF - 722.5kb

Datasheet

  1. ASEPCO diaphragms datasheet.pdf
    PDF - 234.5kb

Recommended Products

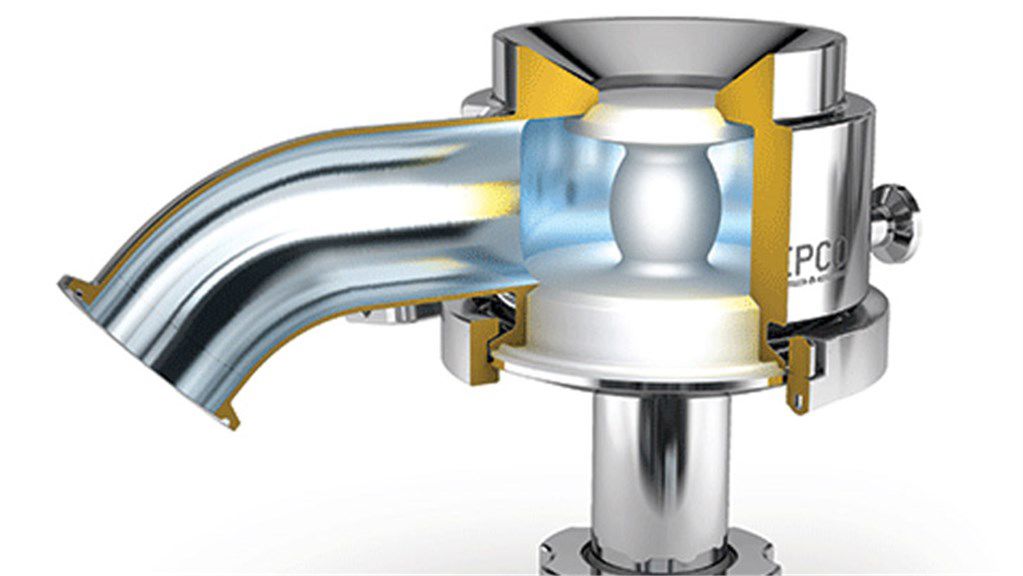

  1. Tank-bottom valves
