Valves - tank valves

Sterillite valves

Overview

ASEPCO Weirless Radial diaphragm™ Sterillite valve

Designed specifically to meet the stringent requirements of the bioprocessing industry Weirless Radial diaphragm tank valves offer solutions to the most challenging applications. It is easy to weld our valves truly flush to the bottom of your tank with our heavy‑duty, thick weld flange. There are no gaskets, bolts or seams.

Features and benefits

  • Patented radial diaphragm, eliminates entrapment for easy cleaning
  • A special steam port added to our standard tank-bottom valve
  • Totally eliminates dead legs associated with steam or cleaning fluid ports on closed valves
  • Truly flush mount design with no gaskets, bolts or seams

Technical summary

Mounting typeFlush
Outlet connectionsButtweld, Sanitary flange
Max. operating pressure17 bar
Max. operating pressure250 psi
Compatible actuatorsAutoclavable manual, Compact, Normally closed, Normally open pneumatic
Compatible diaphragmsEPDM, EPDM plus, Silicone, Silicone plus, Viton
Surface finish optionsElectropolished, Max 10 micro-inch Ra (0.25 µm Ra), Max 15 micro-inch Ra (0.375 µm Ra), Max 20 micro-inch Ra (0.5 µm Ra)
CertificationISO 9001
StandardsASME BPE, CE-PED

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Performance

Performance

Sterillite valve flow rates
Size Cv at 0.07 bar (1 psi)
inches LPM USGPM
0.75 39.7 10.5
1.00 59.8 15.8
1.50 180 47.5
2.00 272 72
2.50 643 170
3.00 1143 302

Specifications

Technical specifications

Sterillite valves
Mounting typeFlush
Flow rate59.8 - 1,143 l/m
Flow rate15.8 - 302 usgpm
Sizes1.0", 1.5", 2.0", 2.5", 3.0"
Outlet connectionsButtweld, Sanitary flange
Max. operating pressure17 bar
Max. operating pressure250 psi
Operating temperature range-51 - 204 °C
Operating temperature range-60 - 400 °F
Compatible actuatorsAutoclavable manual, Compact, Normally closed, Normally open pneumatic
Compatible diaphragmsEPDM, EPDM plus, Silicone, Silicone plus, Viton
Surface finish optionsElectropolished, Max 10 micro-inch Ra (0.25 µm Ra), Max 15 micro-inch Ra (0.375 µm Ra), Max 20 micro-inch Ra (0.5 µm Ra)
CertificationISO 9001
StandardsASME BPE, CE-PED
Weight1.36 - 6.03 kg
Weight3 - 13.29 lbs
Temperature range depends on diaphragm material.

Dimensions

TFXX-210-X: Flush-mounted* Sterillite valve
Size A B C - with Pneumatic Actuator C - with Manual Actuator D E F G H
inches mm in mm in mm in mm in mm in mm in mm in mm in mm in
0.75 113 4.44 52 2.06 173 6.82 148 5.81 76 2.98 76 2.98 76 2.98 85 3.34 73 2.89
1.00 253 9.98 96 3.78 208 8.19 186 7.34 76 2.98 62 2.45 133 5.25 85 3.34 73 2.89
1.50 297 11.71 132 5.19 184 7.26 166 6.53 76 2.98 64 2.53 146 5.75 91 3.59 81 3.17
2.00 339 13.33 163 6.43 271 10.66 212 8.34 102 4.00 95 3.75 185 7.30 98 3.84 91 3.59
2.50 200 7.89 192 7.54 271 10.66 212 8.34 125 4.91 125 4.91 125 4.91 110 4.34 111 4.38
3.00 430 16.92 235 9.24 381 15.00 284 11.17 125 4.91 133 5.22 212 8.34 110 4.34 111 4.38

Weights

Weights
Size Valve Body Total Weight with Manual Actuator Total Weight with Pneumatic Actuator
inches kg lb kg lb kg lb
0.75 1.40 3.10 3.06 6.75 3.61 7.95
1.00 1.36 3.00 3.02 6.65 3.56 7.85
1.50 2 4.43 3.67 8.08 4.21 9.28
2.00 3.45 7.60 6.24 13.75 6.99 15.40
2.50 6.03 13.29 8.80 19.39 16.35 36.04
3.00 5.98 13.18 8.75 19.28 16.30 35.93

Materials of construction

MaterialHastelloy, Stainless steel 316L, Stainless steel AL-6XN

Literature

Brochures

  1. ASEPCO valves (US).pdf
    PDF - 722.5kb

Datasheet

  1. ASEPCO sterillite valve datasheet.pdf
    PDF - 199.4kb

Manuals

  1. Tank valve manual (EN).pdf
    PDF - 2.4mb

Actuators

Actuators

The AKS actuator series** for tank valves is a durable, easy to maintain actuator made of a plastic housing and stainless steel diaphragm interface. The resulting actuator is a hygienic design which is GMP-compliant.

Our tank valve actuators are also available in the AJS actuator series an all stainless steel actuator providing all the same performance, but in a heavy-duty package.

Both versions offer manual and pneumatic options, are provided with laser-etched serial numbers for traceability, and carry a market-leading three year warranty. It is straightforward to add automation to the pneumatic versions by mounting switches or controllers from any manufacturer.

Work with all manufacturers linear switches and controllers (i.e. Westlock, Stonel, Burkert, etc.)

**AKS actuator series only available on 0.5-1.5" sizes

Diaphragms

Diaphragms

Multiple materials cope with virtually every temperature, pressure and chemical challenge in the food and biopharm industries.

Materials include:

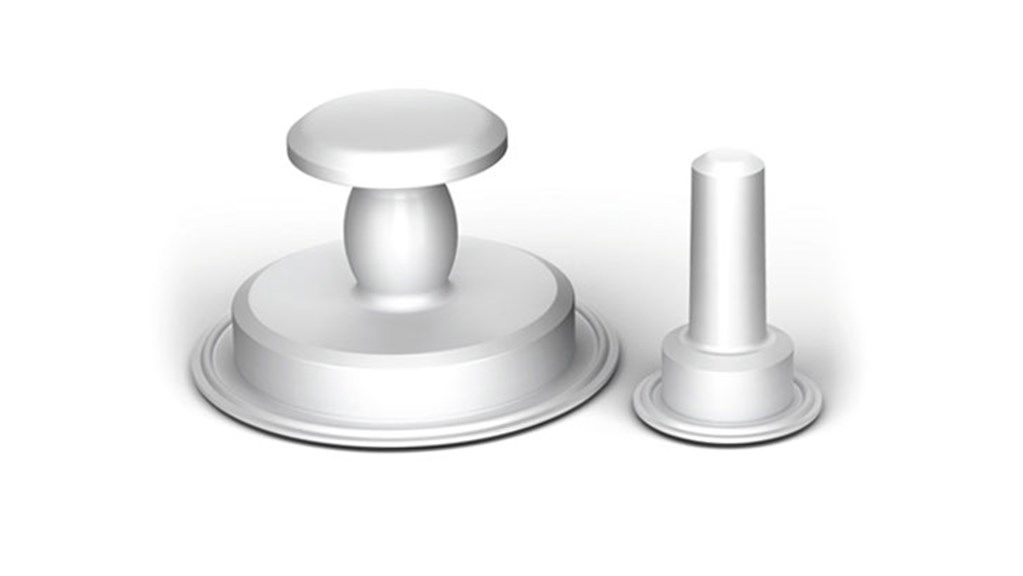

  • Silicone
  • EPDM
  • Silicone plus
  • EPDM plus
  • Viton A
  • Viton A (steam resistant)
  • Viton GF
  • PTFE

All diaphragms are laser-etched with cure dates and batch numbers, ensuring that they are completely traceable.

Order Information

Product codes

Model Code Part Description
TF10-210-X* Radial valve 1”, Sterillite EN 1.4435 body/EN1.4404 fittings, Fits 0.375” thick or less head, 1” 45̊ clamp-end outlet, Flush diaphragm & 0.5” satellite valve, Flush diaphragm @ 180, 0.5” Straight Clamp, Ra surface finish*, electropolished and passivated, includes body/actuator clamp
TF17-210-X* Radial valve 1.5”, Sterillite EN 1.4435 body/EN1.4404 fittings, Fits 0.375” thick or less head, 1.5” 45̊ clamp-end outlet, Flush diaphragm & 0.5” satellite valve, Flush diaphragm @ 180, 0.5” Straight Clamp, Ra surface finish*, electropolished and passivated, includes body/actuator clamp
TF20-210-X* Radial valve 2”, Sterillite EN 1.4435 body/EN1.4404 fittings, Fits 0.375” thick or less head, 2” 45̊ clamp-end outlet, Flush diaphragm & 0.5” satellite valve, Flush diaphragm @ 180, 0.5” Straight Clamp, Ra surface finish*, electropolished and passivated, includes body/actuator clamp
TF30-210-X* Radial valve 3”, Sterillite EN 1.4435 body/EN1.4404 fittings, Fits 0.375” thick or less head, 3” 45̊ clamp-end outlet, Flush diaphragm & 0.5” satellite valve, Flush diaphragm @ 180, 0.5” Straight Clamp, Ra surface finish*, electropolished and passivated, includes body/actuator clamp
*Note: X represents one of the following options–  1 = 20 micro-inch Ra surface finish 2 = 15 micro-inch Ra surface finish 3 = 10 micro-inch Ra surface finish
