Pumps - close-coupled

800 series process pumps

Overview

800 series high flow hygienic pumps

Designed for low-shear sanitary pumping duties up to 35 GPM (8,140 L/h) and pressures up to 50 psi in the biotechnology, pharmaceutical and food industries, 800 series pumps feature a true CIP (clean-in-place) and SIP (steam-in-place) facility. The twin stainless steel rollers disengage to lift off the USP Class VI Bioprene or GORE STA-PURE PCS tube, allowing a straight-through path for cleaning. There are no "dead spots" or crevices.

Mounted on a steel frame, 800 series pumps are available with fixed speed motor gearboxes, integral Varmeca inverter drives, or inverter-rated variable speed motor gearboxes providing 4-20 mA or 0-10 V process control, as well as remote stop/start and reverse. ATEX rated drives are also available.

Features and benefits

  • Maximum flow rate of 8,140 L/h
  • CIP/SIP sterilization at full velocity with no bypass required
  • Self-priming and dry running, with no valves, seals or glands
  • Hinged door with only two captive bolts makes tube inspection and change extremely simple and safe
  • Choice of continuous tubing or elements with hygienic connectors
  • Ideal for viscous or shear sensitive products
  • Motor/gearbox and control options include fixed speed, variable speed with mechanical variators, fixed speed motors with inverter control for 4-20 mA and 0-10 V process control, remote stop/start and reverse and frequency output.
  • Pumpheads to accept B5 output flange-mounted gear motors in a range of single and three phase fixed and electronic variable speeds

Technical summary

Max. flow rate8140 L/h
Min. flow rate162 L/h
Max. operating pressure3.5 bar
Max. ambient temperature40 °C
Max. ambient temperature104 °F
Min. ambient temperature5 °C
Min. ambient temperature41 °F
Motor typesFixed speed motor, Variable speed motor
Min. operating speed8 rpm
Max. operating speed104 rpm
Weight85 - 130 kg

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Performance

Performance

825 series

Speed (rpm) Flow rate (L/h) Fitted Motor Power (kW)
8 162 0.37
10 196 0.37
13 260 0.55
17 327 0.55
21 412 0.55
26 507 0.55
28 563 0.55
33 658 0.55
36 721 0.55
40 796 0.55
47 933 0.75
53 1050 0.75
59 1169 0.75
67 1327 0.75
74 1474 1.1
84 1672 1.1
90 1787 1.1
104 2060 1.1

840 series

Speed (rpm) Flow rate (L/h) Fitted motor power (kW)
8 653 0.55
10 790 0.55
13 1045 0.55
16 1277 0.55
22 1756 0.75
25 1995 0.75
29 2314 1.1
33 2649 1.1
36 2905 1.1
42 3352 1.1
47 3751 1.5
52 4150 1.5
58 4628 1.5
65 5187 1.5
73 5825 2.2
79 6304 2.2
89 7102 2.2
102 8140 3

Specifications

Technical specifications

825840
Max. flow rate2060 L/h8140 L/h
Min. flow rate162 L/h653 L/h
Max. operating pressure3.5 bar3.5 bar
Max. ambient temperature40 °C40 °C
Max. ambient temperature104 °F104 °F
Min. ambient temperature5 °C5 °C
Min. ambient temperature41 °F41 °F
Max. fluid temperature80 °C80 °C
Min. fluid temperature0 °C0 °C
Max. fluid temperature175 °F175 °F
Min. fluid temperature-32 °F-32 °F
Motor typesFixed speed motor, Variable speed motor Fixed speed motor, Variable speed motor
Min. operating speed8 rpm8 rpm
Max. operating speed104 rpm102 rpm
Noise<75dB(A) at 1m <75dB(A) at 1m
Weight85 kg130 kg

825 dimensions

840 dimensions

Materials of construction

Pumphead body assemblyAluminum alloy with epoxy polyester powder coat finish
Pumphead roller assemblyStainless steel 316
Pumphead rotor assemblyAluminum alloy with epoxy polyester powder coat finish, Stainless steel 316
FixingsStainless steel, Zinc plated high tensile steel
Support frameStainless steel 304

Literature

Datasheet

  1. 825CIP SIP hygienic pumps datasheet (EN).pdf
    PDF - 642.2kb
  2. 840CIP SIP high flow hygienic pumps datasheet (EN).pdf
    PDF - 669.9kb

Manuals

  1. 825 pump ATEX manual (EN).pdf
    PDF - 382.6kb
  2. 800 series pumps and pumpheads ATEX Directive (2014-34-EU).pdf
    PDF - 181.9kb
  3. 800 series pump manual (EN).pdf
    PDF - 679.2kb

Recommended Products

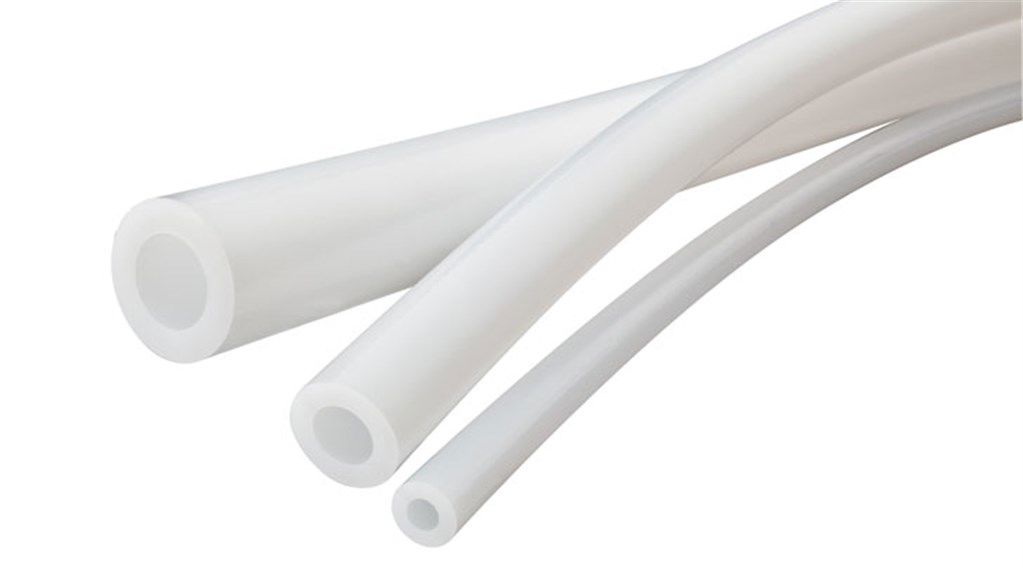

  1. GORE STA-PURE PCS tubing

    GORE STA-PURE PCS tubing

    Reinforced silicone tubing ideal for biopharmaceutical applications. -4 ºF to 176 ºF (-20 ºC to 80 ºC) to 100 psi.

    Tubing - peristaltic

  2. GORE STA-PURE PFL tubing

    GORE STA-PURE PFL tubing

    Reinforced fluroelastomer tubing with extreme chemical resistance. -4 ºF to 176 ºF (-20 ºC to 80 ºC) to 60 psi.

    Tubing - peristaltic
