Pumps - cased pumps

500 series cased pump

Overview

500 series process pumps

530 series peristaltic pumps deliver unrivaled accuracy with simple-to-use HMI requiring minimal key presses during operation. Fluid is fully contained within the tube, providing complete isolation of the pump. Maintain product integrity with visual status indication and an intuitive user interface.

Pumphead options available as standard (others available on request):

  • 520R and 520R2 pumpheads for continuous tubing
  • 520REL, 520REM, 520REH and 520RET pumpheads for tube elements (for low, medium and high pressures)
  • 505L dual channel low pulse, high accuracy dispensing pumphead

Features and benefits

  • Color display and intuitive menu structures provide visual status indication and minimal key presses
  • Flow rates from 0.0006 GPH (0.004 ml/min) to 55.48 GPH (3.5 L/min)
  • 520R, 520R2, 520REL, 520REM, 520REH, 520RET and 505L pumpheads available as standard, others available on request
  • 2,200:1 speed control range from 0.1 to 220 rpm in 0.1 rpm increments
  • Keypad incorporates 3-level security PIN lock
  • NEMA 2 (IP31) and NEMA 4X (IP66) cased pumps
  • Dual voltage, 115 V/230 V 50/60 Hz
  • Remote Analogue/Digital, RS232, RS485, PROFIBUS, SCADA and EtherNet/IP™ control options

Technical summary

Max. flow rate3500 ml/min
Min. flow rate 0.004 ml/min
Max. flow rate56 USGPH
Min. flow rate0 USGPH
Drive speed control ratio2200:1
Operating temperature range5 - 40 °C
Operating temperature range40 - 104 °F
Control typesEtherNet/IP™, Profibus, Remote Analogue/Digital, RS232, RS485, SCADA
Drive standardsCE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements), RoHS
Drive ingress ratingIP31, IP66, NEMA 2, NEMA 4X
Drive power supply115/230 V 1ph 50/60 Hz 135 VA
Compatible tubing bore size 0.5, 1.6, 3.2, 4.8, 6.4, 8, 9.6 mm

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Performance

Pumpheads for continuous tubing

520R/R2 pumpheads

  • Twin sprung roller pumpheads for continuous tubing
  • R — pumphead for continuous 1.6 mm wall thickness
  • R2 — pumphead for continuous 2.4 mm wall thickness
520R — Tube bore and flow rates — ml/min (USGPH)
Tube material Speed 0.5mm 1.6mm 3.2mm 4.8mm 6.4mm 8.0mm 9.6mm
Pumpsil®, Neoprene, GORE® STA-PURE® Pump Tubing – Series PCS, GORE® STA-PURE® Pump Tubing – Series PFL 0.1–220rpm 0.004-9.5 (0–0.15) 0.04-97 (0–1.54) 0.18-390 (0–6.18) 0.40-870 (0.01–13.8) 0.70-1500 (0.01–23.8) 1.10-2400 (0.02–38) NA
Marprene®, Bioprene®, PureWeld XL® 0.1–220rpm 0.004-9.0 (0–0.14) 0.04-92 (0–1.46) 0.17-370 (0–5.86) 0.38-830 (0–13.2) 0.67-1500 (0.01–23.8) 1.10-2300 (0.02–36.5) NA
520R2 — Tube bore and flow rates — ml/min (USGPH)
Tube material Speed 0.5mm 1.6mm 3.2mm 4.8mm 6.4mm 8.0mm 9.6mm
Pumpsil®, GORE® STA-PURE® Pump Tubing – Series PCS, GORE® STA-PURE® Pump Tubing – Series PFL 0.1–220rpm NA 0.04-97 (0–1.54) 0.18-390 (0–6.18) 0.40-870 (0.01–13.8) 0.70-1500 (0.01–23.8) 1.10-2400 (0.02–38) 1.60-3500 (0.03–55.5)
Marprene®/Bioprene®, PureWeld XL® 0.1–220rpm NA 0.04-92 (0–1.46) 0.17-370 (0–5.86) 0.38-830 (0–13.2) 0.67-1500 (0.01–23.8) 1.10-2300 (0.02–36.5) 1.50-3300 (0.02–52.3)

Pumpheads for LoadSure element tubing

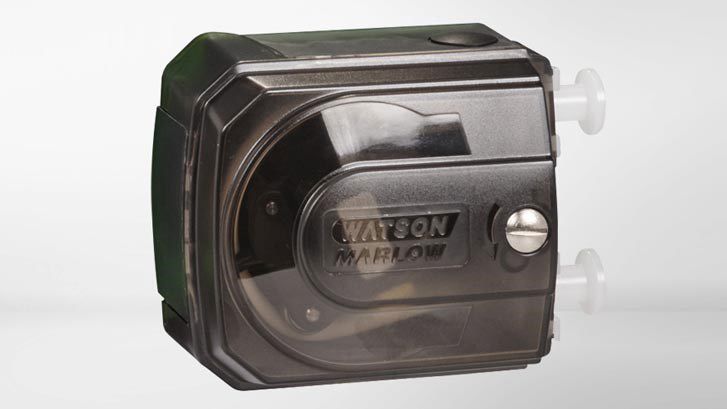

520REL pumphead

  • Twin-roller pumphead for LoadSure elements
  • REL — LoadSure elements for 0-2 bar operation
  • LoadSure elements for use with quick release industrial or sanitary tri-clamp connections
LoadSure® element tubing flow rates — ml/min (USGPH)
Tube material Speed 3.2mm 6.4mm 9.6mm
Pumpsil®, GORE® STA-PURE® Pump Tubing – Series PCS, GORE® STA-PURE® Pump Tubing – Series PFL, Neoprene 0.1 to 220rpm 0.18-390 (0–6.18) 0.70-1500 (0.01–23.8) 1.60-3500 (0.03–55.5)
Marprene® TL, Bioprene® TL 0.1 to 220rpm 0.17-370 (0–5.86) 0.67-1500 (0.01–23.8) 1.50-3300 (0.02–52.3)

520REM pumphead

  • Twin-roller pumphead for LoadSure elements
  • REM — LoadSure elements for 2-4 bar operation
  • LoadSure elements for use with quick release industrial or sanitary tri-clamp connections
LoadSure® element tubing flow rates — ml/min (USGPH)
Tube material Speed 3.2mm 6.4mm
Pumpsil®, GORE® STA-PURE® Pump Tubing – Series PCS, GORE® STA-PURE® Pump Tubing – Series PFL, Neoprene 0.1 to 220rpm 0.18-390 (0–6.18) 0.70-1500 (0.01–23.8)
Marprene® TM, Bioprene® TM 0.1 to 220rpm 0.17-370 (0–5.86) 0.67-1500 (0.01–23.8)

520REH pumphead

  • Twin-roller pumphead for LoadSure elements
  • REH — LoadSure elements for 4-7 bar operation
  • LoadSure elements for use with quick release industrial or sanitary tri-clamp connections
LoadSure® element tubing flow rates — ml/min (USGPH)
Tube material Speed rpm 3.2mm
Marprene® TH, Bioprene® TH, GORE® STA-PURE® Pump Tubing – Series PCS 0.1 to 220 0.20-450 (0–7.13)

520RET pumphead

  • Twin roller pumphead for Loadsure® Elements
  • RET—Maxthane® LoadSure® Elements
  • LoadSure® elements for use with quick release sanitary tri-clamp connections
LoadSure® element flow rates—ml/min (USGPH)
Tube material Speed 3.2 mm 6.4 mm 9.6 mm
Maxthane® 0.1-220 rpm 0.24-520 (0-8.24) 0.75-1600 (0.01-25.4) 1.3-2900 (0.02-46.0)

Specifications

Technical specifications

Drive with 520R PumpheadDrive with 520R2 PumpheadDrive with 520REL PumpheadDrive with 520REM PumpheadDrive with 520REH PumpheadDrive with 520RET Pumphead
Pumphead number of rollers
Pumphead number of channels
Max. flow rate2400 ml/min3500 ml/min3500 ml/min1500 ml/min450 ml/min2900 ml/min
Min. flow rate 0.004 ml/min0.04 ml/min0.17 ml/min0.17 ml/min0.2 ml/min0.24 ml/min
Max. flow rate38.4 usgph56 usgph56 usgph24 usgph7.2 usgph46 usgph
Min. flow rate0.0006 usgph0 usgph
Drive speed control ratio2200:1 2200:1 2200:1 2200:1 2200:1 2200:1
Drive speed 0.1 - 220 rpm0.1 - 220 rpm0.1 - 220 rpm0.1 - 220 rpm0.1 - 220 rpm0.1 - 220 rpm
Operating temperature range5 - 40 °C5 - 40 °C5 - 40 °C5 - 40 °C5 - 40 °C5 - 40 °C
Operating temperature range40 - 104 °F40 - 104 °F40 - 104 °F40 - 104 °F40 - 104 °F40 - 104 °F
Weight10.6 - 11.5 kg10.6 - 11.5 kg10.5 - 11.4 kg10.5 - 11.4 kg10.5 - 11.4 kg10.5 - 11.4 kg
Weight23.4 - 25.4 lbs23.4 - 25.4 lbs23.2 - 25.1 lbs23.2 - 25.1 lbs23.2 - 25.1 lbs23.2 - 25.1 lbs
Drive weight 9.82, 10.7 kg9.82, 10.7 kg9.82, 10.7 kg9.82, 10.7 kg9.82, 10.7 kg9.82, 10.7 kg
Drive weight 21.6, 23.6 lbs21.6, 23.6 lbs21.6, 23.6 lbs21.6, 23.6 lbs21.6, 23.6 lbs21.6, 23.6 lbs
NEMA module weight0.9 kg0.9 kg0.9 kg0.9 kg0.9 kg0.9 kg
NEMA module weight2 lbs2 lbs1.9 lbs1.9 lbs1.9 lbs1.9 lbs
Control typesEtherNet/IP™, Profibus, Remote Analogue/Digital, RS232, RS485, SCADA EtherNet/IP™, Profibus, Remote Analogue/Digital, RS232, RS485, SCADA EtherNet/IP™, Profibus, Remote Analogue/Digital, RS232, RS485, SCADA EtherNet/IP™, Profibus, Remote Analogue/Digital, RS232, RS485, SCADA EtherNet/IP™, Profibus, Remote Analogue/Digital, RS232, RS485, SCADA EtherNet/IP™, Profibus, Remote Analogue/Digital, RS232, RS485, SCADA
Drive control optionsBp, BpN, Du, DuN, DuS, En, EnN, S, SN, U, UN, US Bp, BpN, Du, DuN, DuS, En, EnN, S, SN, U, UN, US Bp, BpN, Du, DuN, DuS, En, EnN, S, SN, U, UN, US Bp, BpN, Du, DuN, DuS, En, EnN, S, SN, U, UN, US Bp, BpN, Du, DuN, DuS, En, EnN, S, SN, U, UN, US Bp, BpN, Du, DuN, En, EnN, S, SN, U, UN
Drive standardsCE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements), RoHS CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements), RoHS CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements), RoHS CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements), RoHS CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements), RoHS CE, cETLus, C-Tick, IRAM, NSF/ANSI 61 (for Marprene tubing and loadsure elements), RoHS
Drive ingress ratingIP31, IP66, NEMA 2, NEMA 4X IP31, IP66, NEMA 2, NEMA 4X IP31, IP66, NEMA 2, NEMA 4X IP31, IP66, NEMA 2, NEMA 4X IP31, IP66, NEMA 2, NEMA 4X IP31, IP66, NEMA 2, NEMA 4X
Drive humidity(Non-condensing) 80% up to 31°C (88°F), decreasing linearly to 50% at 40C (104F) (Non-condensing) 80% up to 31°C (88°F), decreasing linearly to 50% at 40C (104F) (Non-condensing) 80% up to 31°C (88°F), decreasing linearly to 50% at 40C (104F) (Non-condensing) 80% up to 31°C (88°F), decreasing linearly to 50% at 40C (104F) (Non-condensing) 80% up to 31°C (88°F), decreasing linearly to 50% at 40C (104F) (Non-condensing) 80% up to 31°C (88°F), decreasing linearly to 50% at 40C (104F)
Drive noise<70dBA at 1m <70dBA at 1m <70dBA at 1m <70dBA at 1m <70dBA at 1m <70dBA at 1m
Max. altitude2000 2000 2000 2000 2000 2000
Drive power supply115/230 V 1ph 50/60 Hz 135 VA 115/230 V 1ph 50/60 Hz 135 VA 115/230 V 1ph 50/60 Hz 135 VA 115/230 V 1ph 50/60 Hz 135 VA 115/230 V 1ph 50/60 Hz 135 VA 115/230 V 1ph 50/60 Hz 135 VA
Compatible tubing bore size 0.5, 1.6, 3.2, 4.8, 6.4, 8 mm1.6, 3.2, 4.8, 6.4, 8, 9.6 mm3.2, 6.4, 9.6 mm3.2, 6.4 mm3.2 mm3.2, 6.4, 9.6 mm

Dimensions

Materials of construction

BearingsStainless steel
Drive shaftElectroless nickel plated carbon steel
Drain port assemblyHytrel, PP (polypropylene)
Drive caseworkPressure die-cast aluminum LM24
Drive casework coatingAlocrom pre-treatment, Exterior grade polyester powder coat
Guide roller assemblyMoS2 filled Nylon 6 (Nylatron)
Drive keypad/HMIPolyester
Drive rear blanking plateStainless steel 304
Pumphead guardPolycarbonate
Pumphead roller assemblyMoS2 filled Nylon 6 (Nylatron), PPS (polyphenylene sulphide), Stainless steel 316
Pumphead rotor assemblyPPS (polyphenylene sulphide), Stainless steel 316
Pumphead trackPPS (polyphenylene sulphide)
SealsNeoprene, PTFE
Pumphead sealsNeoprene, PTFE
Switch-plateGlass filled ABS plastic

Control

Control options

Key to pump drive models
530S 530SN 530U 530UN 530Du 530DuN 530Bp 530BpN 530US 530DuS 530En 530EnN
Standard Standard IP66 / NEMA 4X Universal Universal IP66 / NEMA 4X Digital Universal Digital Universal IP66 / NEMA 4X Bus Pump / Profibus Bus Pump / Profibus IP66 / NEMA 4X Universal SCADA / IP66 / NEMA 4X Digital Universal SCADA / IP66 / NEMA 4X EtherNet/IP EtherNet/ IP / IP66 / NEMA 4X
Manual control
Pump drive 530S 530SN 530U 530UN 530Du 530DuN 530Bp 530BpN 530US 530DuS 530En 530EnN
Intuitive keypad and color display
Choice of flowrate or speed display
Full calibration with choice of flow units
MemoDose function
Auto restart facility
Leak detection
Remote control
Pump drives 530S 530SN 530U 530UN 530Du 530DuN 530Bp 530BpN 530US 530DuS 530En 530EnN
Configurable Start/Stop, leak detector and pressure switch input via contact closure or 5V TTL or 24V industrial logic
Configurable Start/Stop, leak detector and pressure switch input via 110V industrial logic
Configurable Start/Stop and leak detector input via contact closure or 5V TTL or 24V industrial logic
Note: Does not include pressure switch
Direction change and auto/manual toggle input via contact closure or 5V TTL or 24V industrial logic
Direction change and auto/manual toggle input via 110V industrial logic
Remote operation of MemoDose (foot/hand‑switch or logic input)
Four configurable digital status outputs through 24V, 30W relays
Four configurable digital status outputs through 110V relays
Menu configurable logic outputs
Remote pressure/flow sensors
Analogue speed control
Pump drives 530S 530SN 530U 530UN 530Du 530DuN 530Bp 530BpN 530US 530DuS 530En 530EnN
Fully configurable inputs; 0-10V or 4-20mA
Analogue outputs; 0-10V, 4-20mA
Keypad/analogue input scaling (replacement of diaphragm pumps)
Tacho frequency output; 0-991Hz
2x sensor inputs 4-20mA*

*Range of 3rd party pressure/flow sensors supported - consult factory for list

Security
Pump drives 530S 530SN 530U 530UN 530Du 530DuN 530Bp 530BpN 530US 530DuS 530En 530EnN
3-level Security PIN lock
Network communication
Pump drives 530S 530SN 530U 530UN 530Du 530DuN 530Bp 530BpN 530US 530DuS 530En 530EnN
RS485 network control
RS232 network control
Digital pump commands (Profibus / EtherNet/IP)
Pump drives 530S 530SN 530U 530UN 530Du 530DuN 530Bp 530BpN 530US 530DuS 530En 530EnN
Profibus DP V0
Communication speeds from 9.6 kbits/s up to 12000 kbits/s
Baud Rate (MBPS) 10/100 Full/Half Duplex Operation
Auto-detect bus speed
Speed set point
Speed feedback
Flow calibration function
Hours run
Revolution counter
Leak detection
Low fluid level alarm
Diagnostic feedback
EtherNet/IP
Device Level Ring (DLR)
Flow Totalizer

Take a tour

Drives

Simple-to use HMI requiring minimal key presses to reduce chances of costly errors. Flow proportional to pump speed over 2,200:1 control range. IP31 and IP66 cased pumps for washdown environments.

Order Information

Product codes

Tubing 1.6mm wall thickness tubing for 520R

Tube bore Tube Pumpsil® PureWeld XL® Bioprene® STA-PURE® PCS STA-PURE® PFL Marprene® Neoprene
0.5mm (1/50in) 112 913.A005.016 941.0005.016 933.0005.016 NA 902.0005.016 920.0005.016
0.8mm (1/32in) 13 913.A008.016 941.0008.016 933.0008.016 902.0008.016 920.0008.016
1.6mm (1/16in) 14 913.A016.016 941.0016.016 933.0016.016 961.0016.016 966.0016.016 902.0016.016 920.0016.016
3.2mm (1/8in) 16 913.A032.016 941.0032.016 933.0032.016 961.0032.016 966.0032.016 902.0032.016 920.0032.016
4.8mm (3/16in) 25 913.A048.016 941.0048.016 933.0048.016 961.0048.016 966.0048.016 902.0048.016 920.0048.016
6.4mm (1/4in) 17 913.A064.016 941.0064.016 933.0064.016 961.0064.016 966.0064.016 902.0064.016 920.0064.016
8.0mm (5/16in) 18 913.A080.016 941.0800.016 933.0080.016 961.0080.016 966.0080.016 902.0080.016 920.0080.016

Tubing 2.4mm wall thickness tubing for 520R2

Tube bore Tube Pumpsil® PureWeld XL® Bioprene® STA-PURE® PCS STA-PURE® PFL Marprene® Neoprene
1.6mm (1/16in) 119 913.A016.024 NA 933.0016.024 961.0016.024 966.0016.024 902.0016.024 NA
3.2mm (1/8in) 120 913.A032.024 933.0032.024 961.0032.024 966.0032.024 902.0032.024
4.8mm (3/16in) 15 913.A048.024 933.0048.024 961.0048.024 966.0048.024 902.0048.024
6.4mm (1/4in) 24 913.A064.024 941.0064.024 933.0064.024 961.0064.024 966.0064.024 902.0064.024
8.0mm (5/16in) 121 913.A080.024 NA 933.0080.024 961.0080.024 966.0080.024 902.0080.024
9.6mm (3/8in) 122 913.A096.024 933.0096.024 961.0096.024 966.0096.024 902.0096.024

Element product codes for 520REL

Industrial LoadSure® elements, Quick-release PVDF connectors Sanitary LoadSure® elements, 3/4 in Sanitary PVDF connectors
3.2mm 6.4mm 9.6mm 3.2mm 6.4mm 9.6mm
Pumpsil® 913.A032.PFQ 913.A064.PFQ 913.A096.PFQ 913.A032.PFT 913.A064.PFT 913.A096.PFT
Bioprene® TL 933.0032.PFT 933.0064.PFT 933.0096.PFT
Marprene® TL 902.0032.PFQ 902.0064.PFQ 902.0096.PFQ
STA-PURE® Series PCS 961.0032.PFT 961.0064.PFT 961.0096.PFT
STA-PURE® Series PFL 966.0032.PFQ 966.0064.PFQ 966.0096.PFQ 966.0032.PFT 966.0064.PFT 966.0096.PFT
Neoprene 920.0032.PFQ 920.0064.PFQ 913.A096.PFQ

Element product codes for 520REM

Industrial LoadSure® elements, Quick-release PVDF connectors Sanitary LoadSure® elements, 3/4 in Sanitary PVDF connectors
3.2mm 6.4mm 3.2mm 6.4mm
Bioprene® TM 933.P032.PFT 933.P064.PFT
Marprene® TM 902.P032.PFQ 902.P064.PFQ
STA-PURE® Series PCS 961.M032.PFT 961.M064.PFT
STA-PURE® Series PFL 966.M032.PFQ 966.M064.PFQ 966.M032.PFT 966.M064.PFT

Element product codes for 520REH

Industrial LoadSure® elements, Quick-release PVDF connectors Sanitary LoadSure® elements, 3/4 in Sanitary PVDF connectors
3.2mm 3.2mm
Bioprene® TH 933.H032.PFT
Marprene® TH 902.H032.PFQ
STA-PURE® Series PCS 961.H032.PFQ 961.H032.PFT

Element product codes for 520RET

Sanitary LoadSure® elements, 3/4 in Sanitary PVDF connectors
3.2 mm 6.4 mm 9.6 mm
Maxthane® 0-2 bar (0-30 psi) - - 945.0096.PFT
Maxthane® 0-4 bar (0-60 psi) - 945.0064.PFT -
Maxthane® 0-7 bar (0-100 psi) 945.0032.PFT - -

Recommended Products

  1. 500 series pumpheads

    500 series pumpheads

    Durable, single channel pumps for high flows to 3,500 ml/min. Supports continuous tubing and Loadsure elements for high pressures.

    Pumpheads

  2. Pumpsil tubing

    Pumpsil tubing

    Platinum-cured silicone tubing with ultra smooth bore and excellent flow stability. -4 ºF to 176 ºF (-20 ºC to 80 ºC).

    Tubing - peristaltic

  3. GORE STA-PURE PFL tubing

    GORE STA-PURE PFL tubing

    Reinforced fluroelastomer tubing with extreme chemical resistance. -4 ºF to 176 ºF (-20 ºC to 80 ºC) to 60 psi.

    Tubing - peristaltic

  4. PureWeld XL tubing

    PureWeld XL tubing

    High performance TPE tubing with exceptional life and accurate flow rates. Weldable and sealable for sterile connectivity.

    Tubing - peristaltic

Related Products

  1. 100 series cased pump

    100 series cased pump

    Flow rates to 3.04 GPH (190 ml/min) and pressures up to 30 psi. Speed control up to 10,000:1.

    Pumps - cased pumps

  2. 200 series cased pump

    200 series cased pump

    Flow rates from 6 μl/min to 22.0 ml/min. Multi-channel cassette pumps with up to 32 channels

    Pumps - cased pumps

  3. 300 series cased pump

    300 series cased pump

    Flow rates from 2 μl/min to 2000 ml/min and pressures up to 30 psi. Single or multi channel.

    Pumps - cased pumps

  4. 630 mid-flow process pumps

    630 mid-flow process pumps

    Flow rates to 4.76 GPM (18 L/min) and pressures up to 60 psi. Precise 2650:1 speed control range.

    Pumps - cased pumps

  5. 730 process pumps

    730 process pumps

    Flow rates to 8.8 GPM (33 L/min) and pressures up to 30 psi. Precise 3600:1 speed control range.

    Pumps - cased pumps

Our process pump specialists are here to help you succeed.

To order a product or ask a question

Contact our experts
