Pumps - cased pumps

100 series cased pump

Overview

100 series laboratory pumps

100 series pumps are small and stackable, saving valuable space in cleanroom, LAF and biosafety cabinet installations, capable of flow rates up to 190 ml/min (3.04 GPH).

The 100 series is the perfect pump for maximizing yield in fermentation and cell culture applications. Ultra-compact and stackable for multiple feeds such as pH control, antifoam, nutrient and buffer addition, the 120 offers the ideal combination of size and technology to optimize your process. The 100 series pump is perfectly suited to single-use systems. Error-free tube change takes only seconds.

Biopharmaceutical processes require accurate and repeatable pumping that is easy to validate. With an exceptional 2,000:1 speed range, the 100 series pump delivers the flexibility and purity so vital to drug trials. A keypad lock secures your pumping parameters for consistent and repeatable performance.

Pumphead options available as standard (others available on request):

  • 120R single channel, two roller pumphead for continuous tubing
  • 114DV flip-top single-channel pumphead for continuous tubing
  • 400D1 single-channel pumphead for continuous tubing
  • 400DM2 twin-channel pumphead for manifold tubing
  • 400DM3 three-channel pumphead for manifold tubing

Features and benefits

  • Smooth, wipe down case with no sharp edges to tear gloves and no bug traps. IP31 ingress protection
  • Superior speed control up to 2,000:1, ±1 % set speed accuracy, repeatable flow
  • Efficient and intuitive to use, requiring minimal key presses
  • Compact footprint requires minimal countertop space
  • Maintenance-free, brushless DC motor
  • Single, twin or three channels of flow
  • Manual, remote or auto control
  • Three-year warranty

Technical summary

Max. flow rate190 ml/min
Min. flow rate 0.0001 ml/min
Max. flow rate3.04 USGPH
Min. flow rate0.00002 USGPH
Max. operating pressure2 bar
Max. operating pressure30 psi
Speed control ratio100:1, 1000:1, 200:1, 2000:1, 32:1, 320:1
Operating temperature range5 - 40 °C
Operating temperature range40 - 104 °F
StandardsCE, cETLus
Ingress ratingIP31, NEMA 2
Power supplySupplied with 24 VDC mains transformer plug (range 90-264 VAC 47-63 Hz) which comes with multi-country adaptors

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Performance

Pumpheads for continuous tubing

102R pumphead

  • Single-channel two-roller pumphead
  • Flows from 0.003 ml/min (0.0 USGPH) to 54 ml/min (0.86 USGPH)
  • Suitable for continuous silicone tubing
  • Sprung rotor to maximize tube life
102R pumphead for continuous tubing for fixed (120F) speed pumps — Tube bore and flow rates (ml/min)
Speed rpm 0.5mm 0.8mm 1.6mm 3.2mm 4.8mm
Pumpsil (Silicone) 10rpm 0.3 0.5 2.1 8.5 17
17rpm 0.5 0.9 3.6 14 29
31rpm 0.9 1.6 6.5 26 52
102R pumphead for continuous tubing for manual (120S) and auto (120U) variable speed pumps — Tube bore and flow rates (ml/min)
Speed rpm 0.5mm 0.8mm 1.6mm 3.2mm 4.8mm
Pumpsil (Silicone) 1 – 32rpm 0.03-0.9 0.05-1.6 0.21-6.7 0.85-27 1.6-54
0.1 – 32rpm 0.003-0.9 0.005-1.6 0.021-6.7 0.085-27 0.16-54

114DV pumphead

  • Flip-top single-channel pumphead
  • Flows from 0.002 ml/min (0.0 USGPH) to 190 ml/min (3.04 USGPH)
  • Four rollers for smooth flow
  • Assures trouble free continuous tube loading in seconds
  • High accuracy and repeatable flow
114DV pumphead for continuous tubing for fixed (120F) speed pumps — Tube bore and flow rates (ml/min)
Speed rpm 0.5mm 0.8mm 1.6mm 2.4mm 3.2mm 4.0mm 4.8mm
10rpm 0.2 0.4 1.4 2.9 4.7 6.7 8.5
17rpm 0.3 0.7 2.4 4.9 8.0 11 14
31rpm 0.6 1.2 4.3 9.0 15 21 26
52rpm 1.0 2.1 7.3 15 24 35 44
220rpm 4.4 8.8 31 64 100 150 190
114DV pumphead for continuous tubing for manual (120S) and auto (120U) variable speed pumps — Tube bore and flow rates (ml/min)
Speed rpm 0.5mm 0.8mm 1.6mm 2.4mm 3.2mm 4.0mm 4.8mm
1 - 200rpm 0.02 - 4.0 0.04 - 8.0 0.14 - 28 0.29 - 58 0.47 - 94 0.67 - 130 0.85 - 170
0.1 - 200rpm 0.002 - 4.0 0.004 - 8.0 0.014 - 28 0.029 - 58 0.047 - 94 0.07 - 130 0.085 - 170

400D1 pumphead

  • Single-channel pumphead
  • Flow rates from 0.001 ml/min (0.0 USGPH) to 120 ml/min (1.92 USGPH)
  • Precision machined four roller aluminum rotor
  • Quick release sprung tube clamps
  • Smooth precise flow
400D1 pumphead for continuous tubing for manual (120S) and auto (120U) variable speed pumps — Tube bore and flow rates (ml/min)
Speed rpm 0.5mm 0.8mm 1.6mm 2.4mm 3.2mm 4.0mm
120S/D1 1 - 200rpm 0.01 – 2.2 0.03 – 5.8 0.11 – 23 0.24 – 49 0.41 – 81 0.59 – 120
120U/D1 0.1 - 200rpm 0.001 – 2.2 0.003 – 5.8 0.011 – 23 0.024 – 49 0.041 – 81 0.059 - 120

Pumpheads for manifold tubing

400DM2 and 400DM3 pumpheads

  • DM2 twin-channel, DM3 three-channel pumpheads
  • Compatible with two and three bridge manifold tubing
  • Flow rates from 0.001 ml/min (0.0 USGPH) to 36 ml/min (0.58 USGPH)
  • Precision machined four-roller aluminum rotor
  • Ideal for ultra low flow metering
  • Smooth precise flow
400DM2 (twin channel) and 400DM3 (three channel) pumpheads for manifold tubing — Tube bore and flow rates per channel (ml/min)
Speed rpm 0.13mm 0.19mm 0.25mm 0.38mm 0.50mm
120S 1 – 100rpm 0.001-0.1 0.002-0.2 0.004-0.4 0.008-0.8 0.014-1.4
120U 0.1 – 100rpm 0.0001-0.1 0.0002-0.2 0.0004-0.4 0.0008-0.8 0.001-1.4
Speed rpm 0.64mm 0.76mm 0.89mm 1.02mm 1.14mm
120S 1 – 100rpm 0.022-2.2 0.031-3.1 0.043-4.3 0.055-5.5 0.070-7.0
120U 0.1 – 100rpm 0.002-2.2 0.003-3.1 0.004-4.3 0.006-5.5 0.007-7.0
Speed rpm 1.30mm 1.42mm 1.52mm 1.65mm 1.85mm
120S 1 – 100rpm 0.089-8.9 0.110-11 0.120-12 0.140-14 0.180-18
120U 0.1 – 100rpm 0.009-8.9 0.011-11 0.012-12 0.014-14 0.018-18
Speed rpm 2.06mm 2.29mm 2.54mm 2.79mm
120S 1 – 100rpm 0.210-21 0.250-25 0.310-31 0.360-36
120U 0.1 – 100rpm 0.021-21 0.025-25 0.031-31 0.036-36

Specifications

Technical specifications

Drive with 102R PumpheadDrive with 114DV PumpheadDrive with 400D1 PumpheadDrive with 400DM2 PumpheadDrive with 400DM3 Pumphead
Pumphead number of rollers
Pumphead number of channels
Max. flow rate54 ml/min190 ml/min120 ml/min36 ml/min36 ml/min
Min. flow rate 0.003 ml/min0.002 ml/min0.001 ml/min0.0001 ml/min0.0001 ml/min
Max. flow rate3.04 usgph3.04 usgph3.04 usgph3.04 usgph3.04 usgph
Min. flow rate0.00002 usgph0.00002 usgph0.00002 usgph0.00002 usgph0.00002 usgph
Max. operating pressure2 bar2 bar2 bar2 bar2 bar
Max. operating pressure30 psi30 psi30 psi30 psi30 psi
Speed control ratio32:1, 320:1 200:1, 2000:1 200:1, 2000:1 100:1, 1000:1 100:1, 1000:1
Max. operating speed32 rpm220 rpm200 rpm100 rpm100 rpm
Min. operating speed0.1 rpm0.1 rpm0.1 rpm
Operating temperature range5 - 40 °C5 - 40 °C5 - 40 °C5 - 40 °C5 - 40 °C
Operating temperature range40 - 104 °F40 - 104 °F40 - 104 °F40 - 104 °F40 - 104 °F
Weight1.55 kg1.5 kg1.65 kg1.7 kg1.7 kg
Weight3.4 lbs3.3 lbs3.6 lbs3.7 lbs3.7 lbs
Control optionsAutomatic variable speed, Fixed speed, Manual variable speed Automatic variable speed, Fixed speed, Manual variable speed Automatic variable speed, Manual variable speed Automatic variable speed, Manual variable speed Automatic variable speed, Manual variable speed
StandardsCE, cETLus CE, cETLus CE, cETLus CE, cETLus CE, cETLus
Ingress ratingIP31, NEMA 2 IP31, NEMA 2 IP31, NEMA 2 IP31, NEMA 2 IP31, NEMA 2
HumidityNon-condensing 80% up to 31°C (88°F), decreasing linearly to 50% at 40C (104F) Non-condensing 80% up to 31°C (88°F), decreasing linearly to 50% at 40C (104F) Non-condensing 80% up to 31°C (88°F), decreasing linearly to 50% at 40C (104F) Non-condensing 80% up to 31°C (88°F), decreasing linearly to 50% at 40C (104F) Non-condensing 80% up to 31°C (88°F), decreasing linearly to 50% at 40C (104F)
Noise<60dB(A) at 1 m <60dB(A) at 1 m <60dB(A) at 1 m <60dB(A) at 1 m <60dB(A) at 1 m
Max. altitude2000 2000 2000 2000 2000
Power supplySupplied with 24 VDC mains transformer plug (range 90-264 VAC 47-63 Hz) which comes with multi-country adapters Supplied with 24 VDC mains transformer plug (range 90-264 VAC 47-63 Hz) which comes with multi-country adapters Supplied with 24 VDC mains transformer plug (range 90-264 VAC 47-63 Hz) which comes with multi-country adapters Supplied with 24 VDC mains transformer plug (range 90-264 VAC 47-63 Hz) which comes with multi-country adapters Supplied with 24 VDC mains transformer plug (range 90-264 VAC 47-63 Hz) which comes with multi-country adapters

Dimensions

Materials of construction

BearingsStainless steel
Drive shaftStainless steel
Drive caseworkABS plastic
Keypad/HMIPolyester
Pumphead rotor assemblyAluminum (anodized)
Pumphead trackAluminum (anodized)
SpindlesStainless steel
SpringsStainless steel

Information listed covers the complete range. For detailed specifications of individual models/components refer to user manual or contact WMFTG representative.

Control

Control options

Key to pump drive control
120F 120S 120U
Fixed speed Manual variable speed Auto variable speed
Manual control
Pump drives 120F 120S 120U
Fixed speed (CW direction)
Variable speed 1rpm increments
Variable speed 0.1rpm increments
Numerical speed display
Direction change
Max (prime)
Auto start
Remote control and feedback
Pump drives 120F 120S 120U
Run/stop, direction change, auto/man toggle, alarm
Analogue control
Pump drives 120F 120S 120U
Variable speed 0.1rpm increments
Analogue speed input; 4-20mA, 0-10V
Tacho speed output; 0-5V
Security
Pump drives 120F 120S 120U
Keypad lock to protect set-up
Control Ratio
120F 120S 120U
Pumphead N/A 102R 114DV 400D1 400DM2 400DM3 102R 114DV 400D1 400DM2 400DM3
Manual Fixed 1-32 rpm (32:1) 1-200 rpm (200:1) 1-200 rpm (200:1) 1-100 rpm (100:1) 1-100 rpm (100:1) 0.1-32 rpm (320:1) 0.1-200 rpm (2,000:1) 0.1-200 rpm (2,000:1) 0.1-100 rpm (1,000:1) 0.1-100 rpm (1,000:1)
Automatic N/A N/A N/A N/A N/A N/A 0.01-32 rpm (3,200:1) 0.01-200 rpm (20,000:1) 0.01-200 rpm (20,000:1) 0.01-100 rpm (10,000:1) 0.01-100 rpm (10,000:1)

Literature

Brochures

  1. 120 pumps (US).pdf
    PDF - 1.1mb
  2. Sanitary process pumps (US).pdf
    PDF - 1.9mb

Datasheet

  1. 120 datasheet (EN).pdf
    PDF - 560.7kb

Manuals

  1. 120 cased pump manual (EN).pdf
    PDF - 3.9mb

Pumpheads

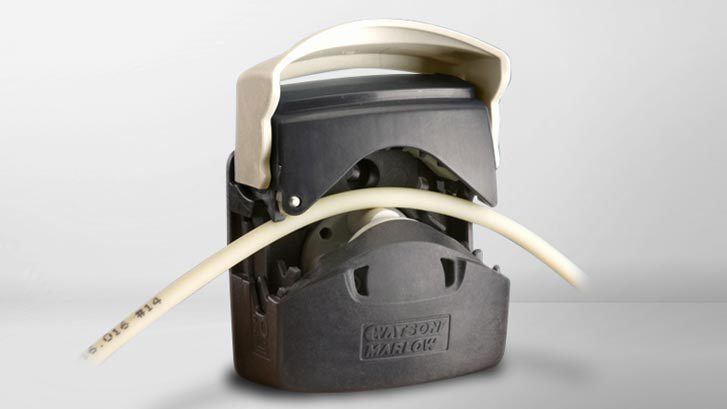

114DV flip-top four roller pumphead

The 114DV single-channel pumphead assures trouble-free continuous tube loading in seconds, high accuracy and repeatable flow. It accepts 1.6mm wall tubing in bores sizes 0.5mm to 4.8mm.

  • Flow rates from 0.002 to 170 ml/min at 2bar (30psi)
  • Single-channel pumphead with four rollers for smooth flow
  • Recommended for continuous duty
  • Models with occlusion settings for standard

102R single-channel two roller pumphead

The 102R single-channel pumphead with two-roller rotor is suitable for continuous silicone tubing. It accepts tubing in bore sizes 0.5mm to 4.8mm.

  • Flow rates from 0.003 to 54 ml/min at 2bar (30psi)
  • Single-channel two roller pumphead
  • Sprung rotor to maximize tube life

400DM2 twin-channel pumphead

The twin-channel 400DM2 pumphead uses three-bridge manifold tubing. Ideal for ultra-low-flow metering. Available for 120S and 120U drives.

  • Flow rates from 0.0001 to 36 ml/min per channel
  • Precision-machined four roller aluminum rotor
  • Smooth, precise flow

400DM3 three-channel pumphead

The three-channel 400DM3 pumphead uses three-bridge manifold tubing. Ideal for ultra-low-flow metering. Available for 120S and 120U drives.

  • Flow rates from 0.0001 to 36 ml/min per channel
  • Precision-machined four roller aluminum rotor
  • Smooth, precise flow

400D1 single-channel pumphead

The single-channel 400D1 pumphead accepts 1.6mm-wall tubing from 0.5mm to 4.0mm.

This metering pumphead is familiar to users replacing older 101 and 400 series pumps with the 120. Suitable for 120S and 120U drives.

  • Flow rates from 0.001 to 120 ml/min
  • Precision-machined four roller aluminum rotor
  • Quick-release sprung tube clamps
  • Smooth, precise flow

Drives

  • 120U offers 0.1 to 200rpm manual remote control of the pump in 0.1rpm increments or automatic control in 0.1rpm increments via 4-20mA or 0-10V inputs. All pumpheads are available.
  • 120S offers 1-200rpm operation in 1rpm increments. It features speed scrolling, priming and keypad lock. All pumpheads are available.
  • 120F is offered in five fixed flow rate versions: 10, 17, 31, 52 and 220rpm.

Order Information

Product codes

Pumphead product codes
Model Description Product code
114DV 114DV pumphead 013.5000.00A
102R 102R single channel pumphead (8mm shaft) 013.7101.000
400D1 400D1 pumphead kit, 1 channel 043.001D.D1C
400DM2 400DM2 pumphead kit, 2 channel 043.001D.D2C
400DM3 400DM3 pumphead kit, 3 channel 043.001D.D3C
120 PSU 120V PSU kit 1A MN2634B

Notes:
The pumpheads can only be sold as 120 replacement heads
The pumpheads are not interchangeable between drive models as they use different shaft designs

Tubing 1.6mm wall thickness for 102R
0.5mm 0.8mm 1.6mm 3.2mm 4.8mm
Pumpsil 913.A005.016 913.A008.016 913.A016.016 913.A032.016 913.A048.016

Tubing 1.6mm wall thickness for 114DV pumphead

0.5mm 0.8mm 1.6mm 2.4mm 3.2mm 4.0mm 4.8mm
Bioprene 903.0005.016 903.0008.016 903.0016.016 903.0024.016 903.0032.016 903.0040.016 903.0048.016
Pumpsil (Silicone) 913.A005.016 913.A008.016 913.A016.016 913.A024.016 913.A032.016 913.A048.016
STA-PURE® Series PCS 961.0016.016 961.0032.016 961.0048.016
Marprene 902.0005.016 902.0008.016 902.0016.016 902.0024.016 902.0032.016 902.0040.016 902.0048.016
STA-PURE® Series PFL 966.0016.016 966.0032.016 966.0048.016

Tubing 1.6mm wall thickness for 400D1 pumphead

0.5mm 0.8mm 1.6mm 2.4mm 3.2mm 4.0mm
Bioprene 903.0005.016 903.0008.016 903.0016.016 903.0024.016 903.0032.016
Pumpsil (Silicone) 913.A005.016 913.A008.016 913.A016.016 913.A024.016 913.A032.016
STA-PURE® Series PCS 961.0016.016 961.0032.016
Marprene 902.0005.016 902.0008.016 902.0016.016 902.0024.016 902.0032.016 902.0040.016
STA-PURE® Series PFL 966.0016.016 966.0032.016
PVC 950.0016.016 950.0032.016
Neoprene 920.0008.016 920.0016.016 920.0032.016

Tubing for 400DM2 and 400DM3 pumpheads

Color code Bore (mm) Pharmed® BPT Tygon® E3603 Tygon® E-LFL
orange/black 0.13 981.A013.072
orange/blue 0.25 979.A025.072 981.A025.072 988.A025.072
orange/green 0.38 979.A038.072 981.A038.072 988.A038.072
green/yellow 0.44 981.A044.072
orange/yellow 0.51 979.A051.072 981.A051.072 988.A051.072
white/yellow 0.57 981.A057.072
orange/white 0.64 979.A064.072 981.A064.072 988.A064.072
black/black 0.76 979.A076.072 981.A076.072 988.A076.072
orange/orange 0.89 979.A089.072 981.A089.072 988.A089.072
white/black 0.95 981.A095.072
white/white 1.02 979.A102.072 981.A102.072 988.A102.072
white/red 1.09 981.A109.072
red/red 1.14 979.A114.072 981.A114.072 988.A114.072
red/gray 1.22 981.A122.072
gray/gray 1.30 981.A130.072 988.A130.072
yellow/yellow 1.42 979.A142.072 981.A142.072 988.A142.072
yellow/blue 1.52 979.A152.072 981.A152.072 988.A152.072
blue/blue 1.65 979.A165.072 981.A165.072 988.A165.072
blue/green 1.75 981.A175.072
green/green 1.85 979.A185.072 981.A185.072 988.A185.072
purple/purple 2.06 979.A206.072 981.A206.072 988.A206.072
purple/black 2.29 979.A229.072 981.A229.072 988.A229.072
purple/orange 2.54 979.A254.072 981.A254.072 988.A254.072
purple/white 2.79 979.A279.072 981.A279.072 988.A279.072

Recommended Products

  1. 100 series pumpheads

    100 series pumpheads

    Iconic flip-pumps for low flows up to 510 ml/min. Accurate flow performance to medium pressures.

    Pumpheads

  2. Pumpsil tubing

    Pumpsil tubing

    Platinum-cured silicone tubing with ultra smooth bore and excellent flow stability. -4 ºF to 176 ºF (-20 ºC to 80 ºC).

    Tubing - peristaltic

  3. Bioprene - Thermoplastic tubing

    Bioprene - Thermoplastic tubing

    Thermoplastic tubing with long peristaltic life and low permeability. 23 ºF to 176 ºF (5 ºC to 80 ºC).

    Tubing - peristaltic

  4. GORE STA-PURE PCS tubing

    GORE STA-PURE PCS tubing

    Reinforced silicone tubing ideal for biopharmaceutical applications. -4 ºF to 176 ºF (-20 ºC to 80 ºC) to 100 psi.

    Tubing - peristaltic

Related Products

  1. 200 series cased pump

    200 series cased pump

    Flow rates from 6 μl/min to 22.0 ml/min. Multi-channel cassette pumps with up to 32 channels

    Pumps - cased pumps

  2. 300 series cased pump

    300 series cased pump

    Flow rates from 2 μl/min to 2000 ml/min and pressures up to 30 psi. Single or multi channel.

    Pumps - cased pumps

  3. 530 process pumps

    530 process pumps

    Flow rates to 55 GPH (3.5 L/min) and pressures up to 100 psi. Precise 2200:1 speed control range.

    Pumps - cased pumps

  4. 630 mid-flow process pumps

    630 mid-flow process pumps

    Flow rates to 4.76 GPM (18 L/min) and pressures up to 60 psi. Precise 2650:1 speed control range.

    Pumps - cased pumps

  5. 730 process pumps

    730 process pumps

    Flow rates to 8.8 GPM (33 L/min) and pressures up to 30 psi. Precise 3600:1 speed control range.

    Pumps - cased pumps
