Tubing - peristaltic

Marprene process tubing

Overview

Marprene long life process tubing

Marprene is a long life thermoplastic elastomer with resistance to a wide range of chemicals. Marprene is highly resistant to oxidizing agents such as ozone, peroxides and sodium hypochlorite.

Marprene is Watson-Marlow's exclusive thermoplastic elastomer peristaltic pump tubing. It lasts at least 10 times as long as tubing in other materials. Long-life tubing means stoppages for a tube change are rare events, easily fitted in with general maintenance.

Always our first recommendation, Marprene has wide chemical compatibility, and is highly resistant to oxidizing agents such as ozone, peroxides and sodium hypochlorite. Marprene is beige and opaque to visible and ultraviolet light, with low permeability to oxygen, carbon dioxide and nitrogen. It meets USDA standards for food handling.

Chemical Compatibility Guide

Features and benefits

  • Color/transparency Beige/opaque
  • Spallation Fair
  • Certification FDA regulations 21 CFR177.2600, NSF/ANSI 61 for contact with aqueous food
  • Operating temperature 41 °F to 176 °F
  • Available in thirty different bore sizes, five wall thicknesses and three coil lengths, including bulk reels which provide cost savings
  • Also suitable in Loadsure elements.

Technical summary

SpallationFair
CertificationFDA 21CFR177.2600
Operating temperature range5 - 80 °C
Operating temperature range41 - 176 °F
Shelf life5 years
Autoclave stability121 °C 30 minutes

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Specifications

Technical specifications

Marprene
Bore size0.5 - 25.4 mm
Bore size0.02 - 1 in
Wall thickness1.6 - 4.8 mm
Wall thickness0.0625 - 0.1875 in
Length3 - 152 m
ColorBeige
TransparencyOpaque
SpallationFair
Life reference313/314 pumpheads - 10000 hours, 620R pumpheads - 6000 hours
CertificationFDA 21CFR177.2600
Operating temperature range5 - 80 °C
Operating temperature range41 - 176 °F
Hardness, shore A (5sec)62-68
Specific gravity0.95-0.98 g/ml
UV resistance Excellent
Ultimate tensile strength55-690 bar
Ultimate tensile strength>798 psi
Elongation at break340-600 %
Tensile stress at 100% elongation1.9-3.0 Mpa
Gas permeability ratingFair
Water absorptionLow
Shelf life5 years
Autoclave stability121 °C 30 minutes

Materials of construction

TubinglThermoplastic elastomer

Production

Production

Marprene is Watson-Marlow's exclusive thermoplastic elastomer peristaltic pump tubing. It lasts at least 10 times as long as tubing in other materials. Long-life tubing means stoppages for a tube change are rare events, easily fitted in with general maintenance.

Always our first recommendation, Marprene has wide chemical compatibility, and is highly resistant to oxidizing agents such as ozone, peroxides and sodium hypochlorite. Marprene is beige and opaque to visible and ultraviolet light, with low permeability to oxygen, carbon dioxide and nitrogen. It meets USDA standards for food handling.

Order Information

Product codes

Tube ordering codes
Bore Wall Coil size
mm inch mm inch 15m/50ft 5m/16ft 152m/500ft
0.5 1/50 1.6 1/16 902.0005.016 902.0005.J16 902.0005.R16
0.8 1/32 1.6 1/16 902.0008.016 902.0008.J16 902.0008.R16
1.6 1/16 1.6 1/16 902.0016.016 902.0016.J16 902.0016.R16
2.4 3/32 1.6 1/16 902.0024.016 902.0024.J16 902.0024.R16
3.2 1/8 1.6 1/16 902.0032.016 902.0032.J16 902.0032.R16
4.8 3/16 1.6 1/16 902.0048.016 902.0048.J16 902.0048.R16
6.4 1/4 1.6 1/16 902.0064.016 902.0064.J16 902.0064.R16
122m/400ft
8.0 5/16 1.6 1/16 902.0080.016 902.0080.J16 902.0080.R16
152m/500ft
1.6 1/16 2.4 3/32 902.0016.024 902.0016.J24 902.0016.R24
3.2 1/8 2.4 3/32 902.0032.024 902.0032.J24 902.0032.R24
122m/400ft
4.8 3/16 2.4 3/32 902.0048.024 902.0048.J24 902.0048.R24
91m/300ft
6.4 1/4 2.4 3/32 902.0064.024 902.0064.J24 902.0064.R24
61m/200ft
8.0 5/16 2.4 3/32 902.0080.024 902.0080.J24 902.0080.R24
46m/150ft
9.6 3/8 2.4 3/32 902.0096.024 902.0096.J24 902.0096.R24
4.8 3/16 3.2 1/8 902.0048.032 - -
3m/10ft 61m/200ft
6.4 1/4 3.2 1/8 902.0064.032 902.0064.I32 902.0064.R32
46m/150ft
9.6 3/8 3.2 1/8 902.0096.032 902.0096.I32 902.0096.R32
12.7 1/2 3.2 1/8 902.0127.032 902.0127.I32 -
15.9 5/8 3.2 1/8 902.0159.032 902.0159.I32 -
8.0 - 4.0 - 902.0080.040 902.0080.I40 -
12.0 - 4.0 - 902.0120.040 902.0120.I40 -
16.0 - 4.0 - 902.0160.040 902.0160.I40 -
9.6 3/8 4.8 3/16 902.0096.048 902.0096.I48 -
12.7 1/2 4.8 3/16 902.0127.048 902.0127.I48 -
15.9 5/8 4.8 3/16 902.0159.048 902.0159.I48 -
19.0 3/4 4.8 3/16 902.0190.048 902.0190.I48 -
25.4 1 4.8 3/16 902.0254.048 902.0254.I48 -

Related Products

  1. Maxthane tubing elements

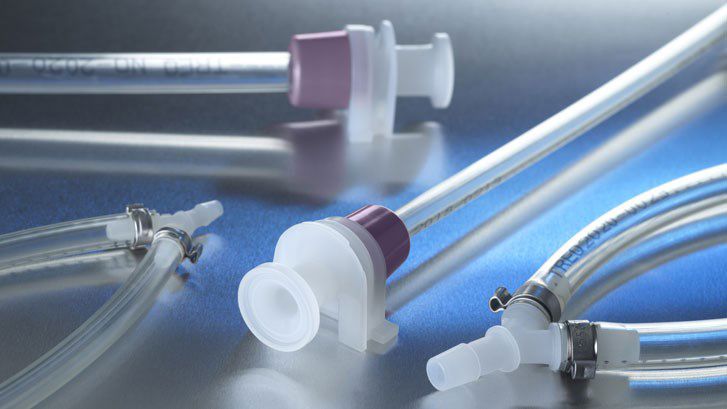

    Maxthane tubing elements
