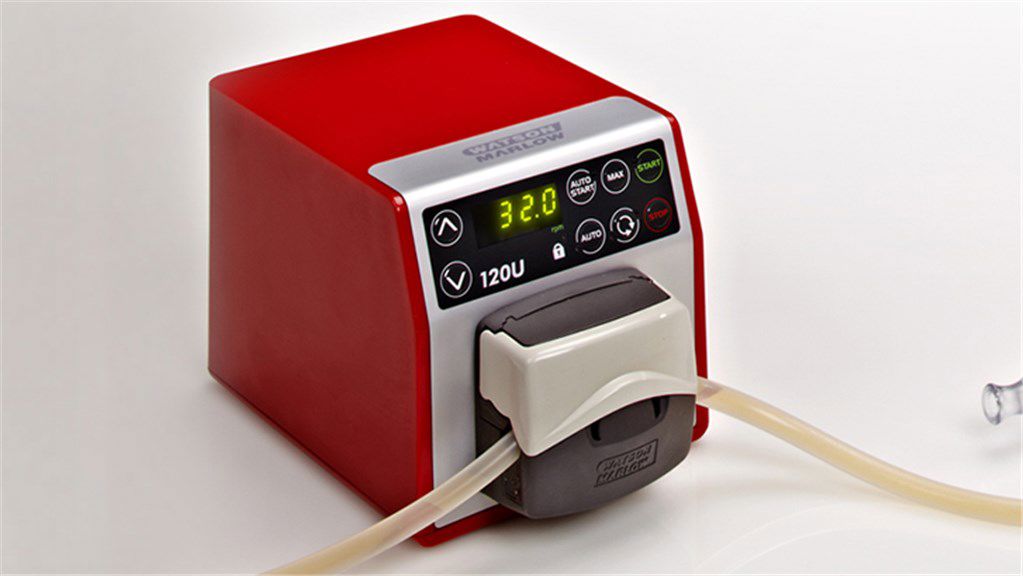

100 series cased pump
Flow rates to 3.04 GPH and pressures up to 30 psi. Speed control up to 10,000:1.
Pumps - cased pumps
Tubing - peristaltic
Neoprene tubing
Overview
Neoprene peristaltic tubing
Neoprene offers good performance with abrasive slurries in industrial applications. Good suction and pressure capabilities.
Features and benefits
- Color: Black
- Working temperature range: 32 °F to 176 °F
- Available in 18 different bore sizes, three different wall thicknesses and two coil lengths.
Technical summary
| Operating temperature range | 0 - 80 °C |
| Operating temperature range | 0 - 176 °F |
Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.
Specifications
Technical specifications
| Neoprene | |
|---|---|
| Bore size | 0.8 - 25.4 mm |
| Bore size | 0.03125 - 1 in |
| Wall thickness | 1.6 - 4.8 mm |
| Wall thickness | 0.0625 - 0.1875 in |
| Length | 1 m |
| Color | Black |
| Operating temperature range | 0 - 80 °C |
| Operating temperature range | 0 - 176 °F |
Literature
Brochures
-
Tubing overview (EN).pdf
PDF - 659.4kb
Datasheet
