SPS process pump

Overview

SPS process pumps

SPS pumps delivers a low shear, gentle pumping action that safely transfers delicate products without risk of degradation.

Suitable for industrial applications up to 15 bar pressure at flows up to 99,000 L/h SPS is able to transfer products with viscosities from 1 cP to 8 million cP with powerful suction up to 0.85 bar.

Capable of handling soft solids safely up to 60 mm, maintaining end product quality and delivering high yield rates.

Maintenance takes minutes and can be performed in-place by a line operative. SPS series pumps have 20 years warranty on housing and front cover.

Features and benefits

  • Low shear transfer pump, with flow up to 99,000 L/h at pressures up to 15 bar
  • Superior viscous handling
  • Consistent flow with high suction capability up to 0.85 bar
  • Flexible configuration of housing, nozzle type, size orientation, drive and baseplate
  • Hygienic CIP and SIP capability
  • FDA and EC 1935/2004 compliance
  • Operating temperatures up to 180 °C
  • 20-year guarantee on front cover and pump housing

Technical summary

Max. flow rate99000 L/h
Max. flow rate434.2 USGPM
Volume per revolution0.08 - 2.75 L
Volume per revolution0.021 - 0.724 USG
Max. operating pressure15 bar
Max. operating pressure217 psi
Max. particle size10 - 60 mm
Max. particle size0.39 - 2.36 in
StandardsATEX
CertificationEC 1935/2004, FDA

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Datasheet

Specifications

Technical specifications

SPS 100SPS 200SPS 250SPS 300SPS 400SPS 500SPS 600SPS 600L
Max. flow rate4800 L/h7800 L/h11520 L/h18000 L/h41760 L/h69120 L/h99000 L/h99000 L/h
Max. flow rate21.1 usgpm34.2 usgpm50.5 usgpm78.9 usgpm183.2 usgpm303.2 usgpm434.2 usgpm434.2 usgpm
Volume per revolution0.08 L0.13 L0.24 L0.5 L1.16 L1.92 L2.75 L2.75 L
Volume per revolution0.021 usg0.034 usg0.063 usg0.132 usg0.305 usg0.505 usg0.724 usg0.724 usg
Max. operating pressure10 bar10 bar15 bar15 bar15 bar15 bar15 bar10 bar
Max. operating pressure145 psi145 psi217 psi217 psi217 psi217 psi217 psi145 psi
Max. particle size10 mm20 mm22 mm30 mm48 mm50 mm60 mm60 mm
Max. particle size0.39 in0.79 in0.87 in1.18 in1.89 in1.97 in2.36 in2.36 in
Max. operating speed1000 rpm1000 rpm800 rpm600 rpm600 rpm600 rpm600 rpm600 rpm
Max. operating temperature180 °C180 °C180 °C180 °C180 °C180 °C180 °C180 °C
Max. operating temperature356 °F356 °F356 °F356 °F356 °F356 °F356 °F356 °F
Shaft diameter18 mm28 mm28 mm45 mm50 mm50 mm65 mm65 mm
Shaft diameter0.71 inch1.1 inch0.98 inch1.77 inch1.97 inch1.97 inch2.56 inch2.56 inch
Shaft height72 mm95 mm146 mm150 mm195 mm235 mm235 mm235 mm
Shaft height2.83 inch3.74 inch5.75 inch5.91 inch7.68 inch9.25 inch9.25 inch9.25 inch
StandardsATEX ATEX ATEX ATEX ATEX ATEX ATEX ATEX
CertificationEC 1935/2004, FDA EC 1935/2004, FDA EC 1935/2004, FDA EC 1935/2004, FDA EC 1935/2004, FDA EC 1935/2004, FDA EC 1935/2004, FDA EC 1935/2004, FDA
Port orientationVarious options to meet your requirements Various options to meet your requirements Various options to meet your requirements Various options to meet your requirements Various options to meet your requirements Various options to meet your requirements Various options to meet your requirements Various options to meet your requirements
Port typeFlange, Milk fitting, RJT, SMS, TC Flange, Milk fitting, RJT, SMS, TC Flange, Milk fitting, RJT, SMS, TC Flange, Milk fitting, RJT, SMS, TC Flange, Milk fitting, RJT, SMS, TC Flange, Milk fitting, RJT, SMS, TC Flange, Milk fitting, RJT, SMS, TC Flange, Milk fitting, RJT, SMS, TC

Dimensions

Pump size
Model L L1 L2 S1 B B1 H1 H2
min. max. min. max. min. max. min. max.
mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch mm inch
SPS 100 735 28.9 860 33.9 292 11.5 800 31.5 89 3.5 210 8.3 97 3.8 121 4.8 300 11.8 330 13.0 202 8.0 232 9.1
SPS 200 740 29.1 960 37.8 345 13.6 800 31.5 95 3.7 210 8.3 106 4.2 137 5.4 314 12.4 344 13.5 208 8.2 238 9.4
SPS 250 872 34.3 1091 43 428 16.9 800 31.5 114 4.5 210 8.3 126 4.96 156 6.14 375 14.8 445 17.5 250 9.84 290 11.4
SPS 300 985 38.8 1382 54.4 492 19.4 1100 43.3 128 5.0 280 11.0 156 6.1 182 7.2 426 16.8 490 19.3 270 10.6 310 12.2
SPS 400 1235 48.6 1805 71.1 619 24.4 1300 51.2 169 6.7 380 15.0 192 7.6 208 8.2 505 19.9 567 22.3 318 12.5 358 14.1
SPS 500 1300 51.2 1640 64.6 659 25.9 1300 51.2 131 5.16 380 15 212 8.35 235 9.25 560 22 623 24.5 348 13.7 388 15.3
SPS 600 1755 69.1 2200 86.6 771 30.4 1400 55.1 319 12.6 400 15.8 274 10.8 274 10.8 630 24.8 700 27.6 353 13.9 433 17.1
SPS 600L 1302 51.3 2100 82.7 686 27.0 1400 55.1 234 9.2 400 15.8 270 10.6 274 10.8 675 26.2 757 29.8 390 13.4 487 19.2

Materials of construction

HousingStainless steel 1.4404, Stainless steel 316L
Bearing frameStainless steel 1.4301, Stainless steel 304
RotorStainless steel 1.4404, Stainless steel 316L
Gate and linersPolyamide
Seals/gasketsEPDM, FFKM, FKM, NBR, PTFE

Literature

Brochures

  1. SPS pumps (EN).pdf
    PDF - 1005kb

Datasheet

  1. Masosine SPS datasheet (EN).pdf
    PDF - 237.8kb

Manuals

  1. SPS pump manual (EN).pdf
    PDF - 6.1mb

Options and accessories

  • A heating and cooling jacketing system available to maintain the duty fluid temperature
  • Interchangeable materials to suit the duty fluid – alternative materials for liners, front supports, O-rings and sealing systems
  • Static and dynamic flush systems available

Related Products

  1. Certa pump

    Certa pump

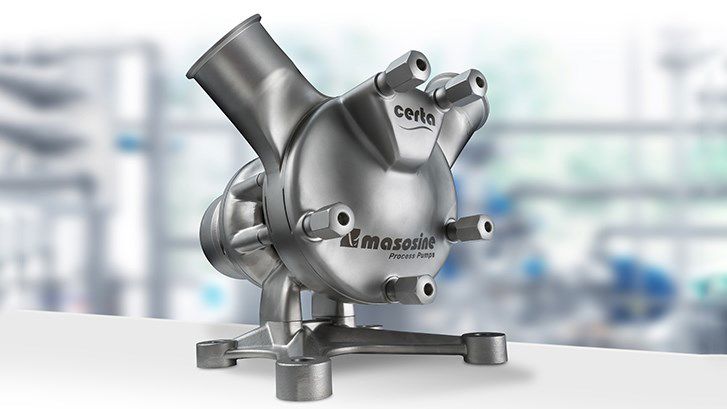

    Low shear, virtually no pulsation EHEDG Type EL Aseptic Class I certified pump. Up to 50 % less power than other pumps.
