Aseptic filling - fully automatic systems

FP50 aseptic liquid filling system

Overview

FP50 liquid filling and stoppering system

FP50 is a compact aseptic liquid filling system ideal for small-to-medium sized batches within the biotechnology and pharmaceutical industries.

Filling is done by the integrated, highly accurate peristaltic dispenser, which can give an optimum filling accuracy for volumes from micro-volumes - preventing costly overfilling of expensive liquids. Automatic gas purging can be programmed before, during and after the liquid filling process.

A complete change-over between different liquids, vials or stoppers can be done by the operator within five minutes, without any technical support from outside the cleanroom. This represents an excellent return on investment.

Short and reliable delivery time reduces project costs.

The FP50 can be customized to fit different sizes of trays at the infeed and the outfeed. The infeed tray can also be positioned on the front of the FP50 or the left side of the unit.

Features and benefits

  • Ideal for flexible small batch production
  • No costly overfilling – fill accuracy better than ±0.5 %
  • Handling of vials from 2R to 100H with full or partial stoppering
  • Universal format parts for 13 mm and 20 mm stoppers
  • Small footprint for LAF bench or RABS installations
  • No extra format parts for different vial sizes
  • Up to 25 vials per minute

Technical summary

Filling volume range 0.1-100 ml
Accuracy±1.0 %
Capacity1500 units/hour
StoppersØ13 mm and 20 mm

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Specifications

Technical specifications

FP50
Filling volume range 0.1-100 ml
Accuracy±1.0 %
Capacity1500 units/hour
Power supply110/230 VAC, 50/60 Hz
Power consumptionMax 500 W
Air supply/pneumatic connection5 bar clean and dry air
Interface2 x RS232 serial communication for balance and/or printer 1 x 24V output signal for gas purge valve
Weight150 kg
StoppersØ13 mm and 20 mm

Dimensions

Materials of construction

MaterialAnodized aluminum, Stainless steel, Stainless steel AISI 316L

Literature

Brochures

  1. FP50 support (EN).pdf
    PDF - 548.2kb
  2. FP50 (EN).pdf
    PDF - 670kb

Datasheet

Videos

Recommended Products

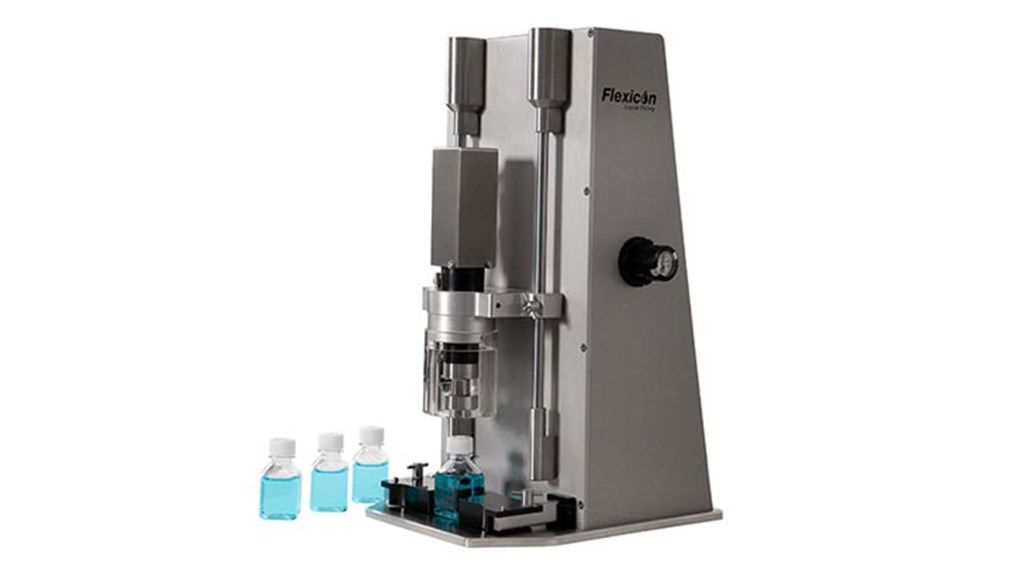

  1. Flexible screw capping machines
