300 series flip-top pumpheads

Overview

300 series single-channel pumpheads

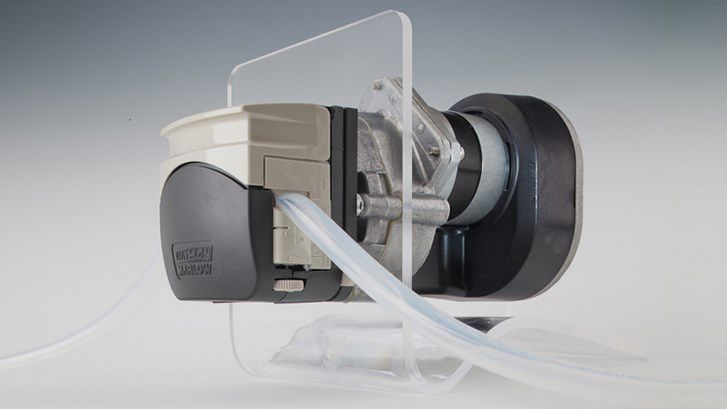

The 300 series combines performance, practicality and design. With its iconic flip-top design it is an industry standard OEM product in medical device, biotechnology and diagnostic applications, and very popular in many other applications too.

Available as pumpheads only for customers wishing to specify their own motor/control. In three, four, six and eight roller versions. More rollers for greater accuracy and reduced pulsation. The three-roller 313 pumphead offers maximum flows. Great flexibility with nine tubing sizes in many different tubing materials. Providing flows to 2 L/min continuously or 3 L/min intermittently. Strong IXEF moulded pumpheads available in a range of colors.

  • Its iconic flip-top design for fast and error-free tube loading makes it the most popular choice in many medical and upstream cell culture applications
  • Pumpheads can be extended to provide up to six separate channels depending on drive torque
  • Three and four roller versions are most popular. Up to eight rollers is possible for lowest pulsation and greatest accuracy

Technical summary

Max. flow rate continuous 2000 ml/min
Pump typeCased, Panel mount

Performance

Performance

313D pumphead

313 rapid load pumpheads (three rollers) for continuous 1.6mm wall tubing — Flow rates (ml/min)
Tube bore (ml/rev) Max continuous flow (ml/min) Max Intermittent flow (ml/min)
0.5 0.03 12 18
0.8 0.06 24 36
1.6 0.26 104 156
3.2 1 400 600
4.8 2.2 880 1320
6.4 3.6 1400 2160
8 5 2000 3000
1.6mm wall thickness tubing
Tube bore (mm) 0.5 0.8 1.6 3.2 4.8 6.4 8.0
Max continuous speed (rpm) 400 400 400 400 400 400 400
Max Intermittent speed (rpm) 600 600 600 600 600 600 600
With Marprene tubing
Required torque up to 0.5 bar kgcm 1.4 1.4 2.0 2.8 4.2 4.8 6.3
Required torque up to 2.0 bar kgcm 1.5 1.5 2.1 4.0 6.1 6.8 7.8
Max continuous pressure; bar 2.0 2.0 2.0 2.0 1.3 1.3 1.3
Max intermittent pressure; bar 3.0 3.0 3.0 2.5 2.0 2.0 1.7
With Silicone tubing
Required torque up to 0.5 bar kgcm 1.1 1.1 1.7 2.3 2.9 3.5 4.0
Required torque up to 2.0 bar kgcm 1.5 1.5 2.1 3.2 4.3 5.2 6.7
Max continuous pressure; bar 2.0 2.0 1.5 1.5 1.0 1.0 1.0
Max intermittent pressure; bar 2.5 2.5 2.0 2.0 1.3 1.3 1.3

314D pumphead

314 rapid load pumpheads (four rollers) for continuous 1.6mm wall tubing — Flow rates (ml/min)
Tube bore (ml/rev) Max continuous flow (ml/min) Max Intermittent flow (ml/min)
0.5 0.03 9.0 18
0.8 0.06 18 36
1.6 0.25 75 150
3.2 0.85 255 510
4.8 1.9 570 1140
6.4 3.0 900 1800
8.0 4.0 1200 2400

Specifications

Technical specifications

313D pumphead314D pumphead
Number of channels
Number of rollers
Max. flow rate continuous 2000 ml/min1200 ml/min
Max. flow rate intermittent 3000 ml/min2400 ml/min
Max. continuous operating speed400 rpm400 rpm
Max. intermittent operating speed600 rpm600 rpm
Pump typeCased, Panel mount Cased, Panel mount
Compatible tubing bore size 0.5, 0.8, 1.6, 3.2, 4.8, 6.4, 8 mm0.5, 0.8, 1.6, 3.2, 4.8, 6.4, 8 mm
Compatible tubing wall thickness 1.6 mm1.6 mm

Pumphead/adapter dimensions

Materials of construction

BearingsCarbon steel
Pumphead body assemblyGlass filled polypropylene, IXEF (Polyarylamide), Stainless steel
Pumphead trackIXEF (Polyarylamide)
Pumphead roller assemblyMoS2 filled Nylon 6 (Nylatron)
Pumphead rotor assemblyElectroless nickel plated hardened steel, Glass filled Nylon

Information listed covers the complete range. For detailed specifications of individual models/components refer to user manual or contact WMFTG representative.

Literature

Datasheet

  1. 313D A pumphead datasheet (EN).pdf
    PDF - 260.4kb
  2. 313 pumphead datasheet (EN).pdf
    PDF - 616.3kb
  3. 314 pumphead datasheet (EN).pdf
    PDF - 517.7kb
  4. 314D A pumphead datasheet (EN).pdf
    PDF - 646.3kb

Manuals

  1. 300 Series pumpheads ATEX Directive (2014-34-EU).pdf
    PDF - 181kb

Order Information

Product codes

313 rapid load pumpheads

Three roller 1.6mm wall thickness tubing
Description Partcode
Clamp setting 313D 313X 313B 313XB 313DW 313BW
Variable 033.3411.000 033.3431.000 033.3421.000 033.3441.000 033.3451.000 033.3461.000
0.5-1.6 033.3411.00c 033.3431.00c 033.3421.00c 033.3441.00c 033.3451.00c 033.3461.00c
3.2 033.3411.00f 033.3431.00f 033.3421.00f 033.3441.00f 033.3451.00f 033.3461.00f
4.8 033.3411.00k 033.3431.00k 033.3421.00k 033.3441.00k 033.3451.00k 033.3461.00k
6.4-8.0 033.3411.00n 033.3431.00n 033.3421.00n 033.3441.00n 033.3451.00n 033.3461.00n
Three roller 2.4mm wall thickness tubing
Description Partcode
Clamp setting 313D2 313X2 313B2 313XB2 313DW2 313BW2
Variable 033.3511.000 033.3531.000 033.3521.000 033.3541.000 033.3551.000 033.3561.000
0.5-1.6 033.3511.00c 033.3531.00c 033.3521.00c 033.3541.00c 033.3551.00c 033.3561.00c
3.2 033.3511.00f 033.3531.00f 033.3521.00f 033.3541.00f 033.3551.00f 033.3561.00f
4.8 033.3511.00k 033.3531.00k 033.3521.00k 033.3541.00k 033.3551.00k 033.3561.00k
6.4 033.3511.00n 033.3531.00n 033.3521.00n 033.3541.00n 033.3551.00n 033.3561.00n

314 rapid load pumpheads

Four roller 1.6mm wall thickness tubing
Description Partcode
Clamp setting 314D 314X 314B 314XB 314DW 314BW
Variable 033.4411.000 033.4431.000 033.4421.000 033.4441.000 033.4451.000 033.4461.000
0.5-1.6 033.4411.00C 033.4431.00C 033.4421.00C 033.4441.00C 033.4451.00C 033.4461.00C
3.2 033.4411.00F 033.4431.00F 033.4421.00F 033.4441.00F 033.4451.00F 033.4461.00F
4.8 033.4411.00K 033.4431.00K 033.4421.00K 033.4441.00K 033.4451.00K 033.4461.00K
6.4-8.0 033.4411.00N 033.4431.00N 033.4421.00N 033.4441.00N 033.4451.00N 033.4461.00N
314BW2
Four roller 2.4mm wall thickness tubing
Description Partcode
Clamp setting 314D2 314X2 314B2 314XB2 314DW2
Variable 033.4511.000 033.4531.000 033.4521.000 033.4541.000 033.4551.000 033.4561.000
0.5-1.6 033.4511.00C 033.4531.00C 033.4521.00C 033.4541.00C 033.4551.00C 033.4561.00C
3.2 033.4511.00F 033.4531.00F 033.4521.00F 033.4541.00F 033.4551.00F 033.4561.00F
4.8 033.4511.00K 033.4531.00K 033.4521.00K 033.4541.00K 033.4551.00K 033.4561.00K
6.4 033.4511.00N 033.4531.00N 033.4521.00N 033.4541.00N 033.4551.00N 033.4561.00N
