400/B series multi-channel pumps

One, two and three channel instrument-quality peristaltic pumps for low flow rates. The spring-loaded track enables extended tube life and flow-accuracy. The adjustable track arm allows the user to optimize for pressure or tube life. Can operate up to 3 bar. Made from durable materials and is integrated with a range of Brushless, DC and AC motors.

400/B1 single channel pumps

Compatible with 1.6 mm wall thickness continuous tubing in six bore sizes.

400/D2 and DM2 compact two-channel pumps

The 400/D2 accepts tube elements with a 1.0 mm wall thickness and four bore sizes, allowing the user to precisely match the pump to the required flow. The 400/DM2 works with standard manifold tubing, which is available in 19 bore sizes.

400/D3 and 400/DM3 compact three-channel pumps

The 400/D3 accepts tube elements with a 1.0 mm wall thickness and four bore sizes, allowing the user to precisely match the pump to the required flow. The 400/DM3 works with standard manifold tubing, which is available in 19 bore sizes.

Features and benefits

  • Flow rates up to 236 ml/min
  • Wide range of Brushless, DC and AC motors available
  • Supports a wide range of applications with the multiple channel, continuous tubing, tube element and manifold tubing options.

Technical summary

Motor typesFixed speed DC motor, Stepper motor
Pumphead optionsB1, D2, D3

Technical Summary table lists features available within the range. See ‘Technical specifications’ tab for model specific information.

Share

Performance

Performance

400FD/D2 pumps

Flow rates (ml/min) 1.0mm wall tubing
Tube bore (mm) Speed (rpm)
4 5 10 12 15 20 25 40 50 75 100 130 200 250
0.5 0.05 0.07 0.13 0.16 0.20 0.26 0.33 0.52 0.65 1.0 1.3 1.7 2.6 3.3
1.0 0.20 0.25 0.50 0.60 0.75 1.0 1.3 2.0 2.5 3.8 5.0 6.5 10 12
2.0 0.72 0.90 1.8 2.2 2.7 3.6 4.5 7.2 9.0 13 18 23 36 45
3.0 1.3 1.7 3.3 4.0 5.0 6.6 8.3 4.0 16 25 33 43 66 82
Custom options
Pumpheads Drives
Custom occlusion setting Alternative speeds
Other materials Several drive options
Custom mounting panel 400SCB/534 speed control board (for 400FDC)
Custom colors Encoder
Individual tracks 12VDC 400FDC
2 channel version

400FD/D3 pumps

Flow rates (ml/min) 1.0mm wall tubing
Tube bore (mm) Speed (rpm)
4 5 10 12 15 20 25 40 50 75 100 130 200 250
0.5 0.05 0.07 0.13 0.16 0.2 0.26 0.33 0.52 0.65 1.0 1.3 1.7 2.6 3.3
1.0 0.2 0.25 0.5 0.6 0.75 1.0 1.3 2.0 2.5 3.8 5.0 6.5 10 12
2.0 0.72 0.9 1.8 2.2 2.7 3.6 4.5 7.2 9.0 13 18 23 36 45
3.0 1.3 1.7 3.3 4.0 5.0 6.6 8.3 12.7 16 25 33 43 66 82
Custom options
Pumpheads Drives
Custom occlusion setting Alternative speeds
Other materials Several drive options
Custom mounting panel 400SCB/534 speed control board (for 400FDC)
Custom colors Encoder
Individual tracks 12VDC 400FDC
3 channel version

Specifications

Technical specifications

400FD/D2400FD/D3400FD/B400ST/B
Motor typesFixed speed DC motor Fixed speed DC motor Fixed speed DC motor Stepper motor
Pumphead optionsD2 D3 B1 B1
Pumphead number of channels2 3
Max. operating speed200 rpm200 rpm350 rpm
Supply voltage12VDC, 24VDC 12VDC, 24VDC 12VDC, 24VDC
Power consumption5 W 5 W
Min. operating temperature-10 °C-10 °C
Max. operating temperature45 °C45 °C
Gearbox ratioSpur; 30:1, 75:1, 250:1 Spur;15:1;30:1;75:1;250;1
Compatible tubing bore size 0.5, 1, 2, 3 mm0.5, 1, 2, 3 mm
Compatible tubing wall thickness 1 mm1 mm

400FD/D2 dimensions

Motor Type 400FD/D2 5W
Dimensions A L=26.5mm x Ø39.6mm
Dimensions B L=81.0mm* x Ø39.6mm
*=maximum length behind mounting plate

400FD/D3 dimensions

Motor Type 400FD/D3 5W
Dimensions A L=26.5mm x Ø39.6mm
Dimensions B L=81.0mm* x Ø39.6mm
*=maximum length behind mounting plate

Materials of construction

Pumphead rotor assemblyAcetal (black)
Pumphead roller assemblyAcetal (black)
Pumphead trackAcetal (black)
Face plateAnodized aluminum
Drive shaftAcid resistant stainless steel
SpringsAcid resistant stainless steel

Information listed covers the complete range. For detailed specifications of individual models/components refer to user manual or contact WMFTG representative.

Literature

Datasheet

  1. 400FD2 datasheet (EN).pdf
    PDF - 179.3kb
  2. 400FD3 datasheet (EN).pdf
    PDF - 173.4kb

Order Information

Product codes

400FD/D2 pumps

Motor type Voltage Speed (rpm) Product code
Standard DC 5W 24-30VDC 100 040.EP1D.N2C
Standard DC 5W 24-30VDC 40 040.EH1D.N2C
Standard DC 5W 24-30VDC 12 040.E81D.N2C
Economy DC 5W 24VDC 200 040.BS1D.N2C
Economy DC 5W 24VDC 75 040.BN1D.N2C
Economy DC 5W 24VDC 25 040.BC1D.N2C
Brushless DC 5W 24VDC 250 040.FT1D.N2C
Brushless DC 5W 24VDC 130 040.FQ1D.N2C
Brushless DC 5W 24VDC 50 040.FK1D.N2C
Brushless DC 5W 24VDC 15 040.F91D.N2C
Syncronous AC 2W 110VAC (60Hz) 25 040.HC1D.N2C
Syncronous AC 2W 220VAC (50Hz) 20 040.JA1D.N2C
Syncronous AC 2W 110VAC (60Hz) 12 040.H81D.N2C
Syncronous AC 2W 220VAC (50Hz) 10 040.J71D.N2C
Syncronous AC 2W 110VAC (60Hz) 5 040.H41D.N2C
Syncronous AC 2W 220VAC (50Hz) 4 040.J31D.N2C

400FD/D3 pumps

Motor type Voltage Speed (rpm) Product code
Standard DC 5W 24-30VDC 100 040.EP1D.N3C
Standard DC 5W 24-30VDC 40 040.EH1D.N3C
Standard DC 5W 24-30VDC 12 040.E81D.N3C
Economy DC 5W 24VDC 200 040.BS1D.N3C
Economy DC 5W 24VDC 75 040.BN1D.N3C
Economy DC 5W 24VDC 25 040.BC1D.N3C
Brushless DC 5W 24VDC 130 040.FQ1D.N3C
Brushless DC 5W 24VDC 50 040.FK1D.N3C
Brushless DC 5W 24VDC 15 040.F91D.N3C

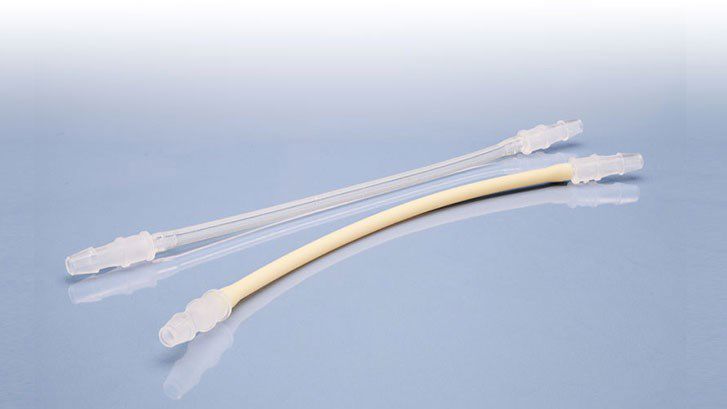

Standard 430 tube elements for 400F/D2 and 400F/D3 pumpheads

Bore/Wall Bioprene Peroxide cured Silicone Connects to
0,.5/1.0mm 049.EF6D.N05 - Tube bore 3.0
1.0/1.0mm 049.EF6D.N10 049.EH6D.N10 Tube bore 3.0
2.0/1.0mm 049.EF6D.N20 049.EH6D.N20 Tube bore 3.0
3.0/1.0mm - 049.EH6D.N30 Tube bore 3.0
